BTE23-14 I2C Breakout Hub Expander Module 10 Port for Arduino Raspberry Pi

🔗 BTE23-14 I2C Breakout Hub Expander Module – 10-Port I2C Splitter | AuscomTech

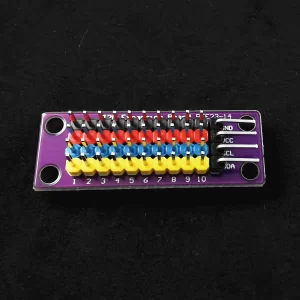

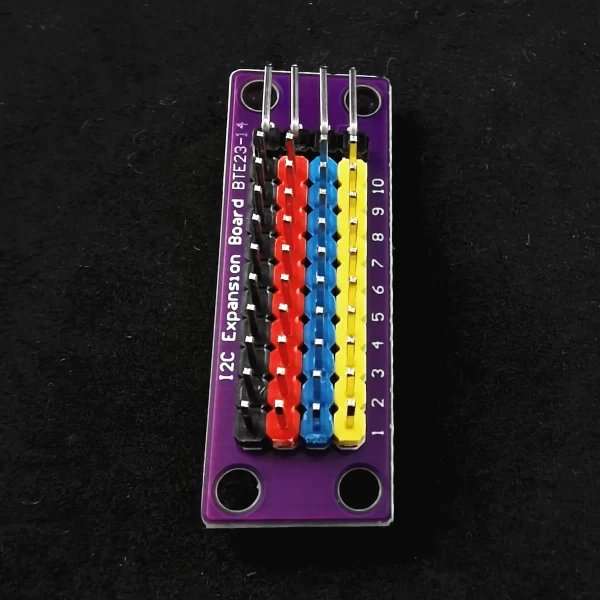

The BTE23-14 I2C Breakout Hub Expander Module is a simple and effective solution for expanding a single I2C bus into multiple connection ports without complex wiring.

Designed as a passive I2C distribution hub, this module allows up to 10 I2C devices to be connected in parallel, making it ideal for sensor-heavy projects, rapid prototyping, and clean I2C bus layouts on Arduino, Raspberry Pi, and STM-based systems.

⭐ Key Features

🔢 10-Port I2C Expansion
Splits one I2C bus into 10 parallel ports for easy multi-device connections.

🔌 Plug-and-Play I2C Breakout
No configuration, firmware, or addressing required — simple physical expansion of SDA/SCL lines.

🧩 Wide Platform Compatibility
Works with Arduino, Raspberry Pi, STM32, and other I2C-capable controllers.

📡 Clean & Organised Wiring
Reduces cable clutter and improves reliability compared to daisy-chained wiring.

🧱 Compact PCB Design
Small footprint suitable for embedded systems, robotics, and tight enclosures.

🛠️ Ideal for Prototyping & Expansion
Perfect for projects requiring multiple I2C sensors, displays, or peripherals.

📊 Technical Specifications

Model: BTE23-14
Function: I2C breakout / hub expander
I2C Ports: 10
Bus Type: I2C (SDA / SCL shared)
Signal Level: Determined by host controller
Active Components: None (passive breakout)
PCB Type: Through-hole / header breakout board

⚠️ Important Notes

• This is a passive I2C hub — it does not perform address translation
• All connected devices must have unique I2C addresses
• Voltage level follows the host controller’s I2C bus
• Pull-up resistors should be provided by the controller or connected devices
• Cable length and total bus capacitance should follow I2C specifications

🧩 Compatible With

• Arduino (Uno, Mega, Nano, etc.)
• Raspberry Pi (all models with I2C enabled)
• STM32 microcontrollers
• ESP32 / ESP8266
• I2C sensors, OLED displays, RTCs, ADCs, DACs
• Robotics and automation controllers

⚙️ Typical Applications

• Multi-sensor I2C systems
• Robotics and automation projects
• IoT sensor hubs
• Rapid prototyping and testing
• Educational electronics projects
• Clean I2C bus distribution

📦 Package Includes

• 1 × BTE23-14 I2C Breakout Hub Expander Module
