Arduino Uno Prototype Shield with Mini Breadboard Prototyping Board Kit

🧪 Arduino Uno Prototype Shield + Mini Breadboard Prototyping Kit | AuscomTech

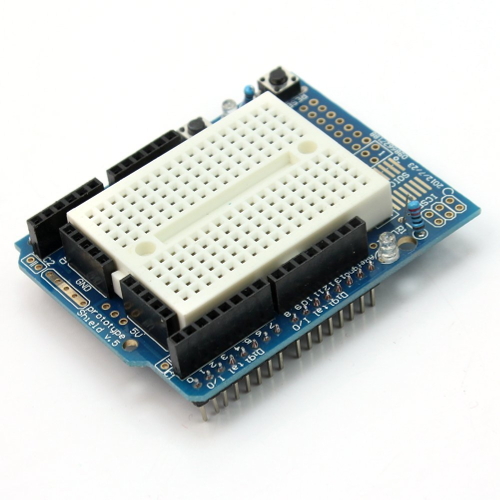

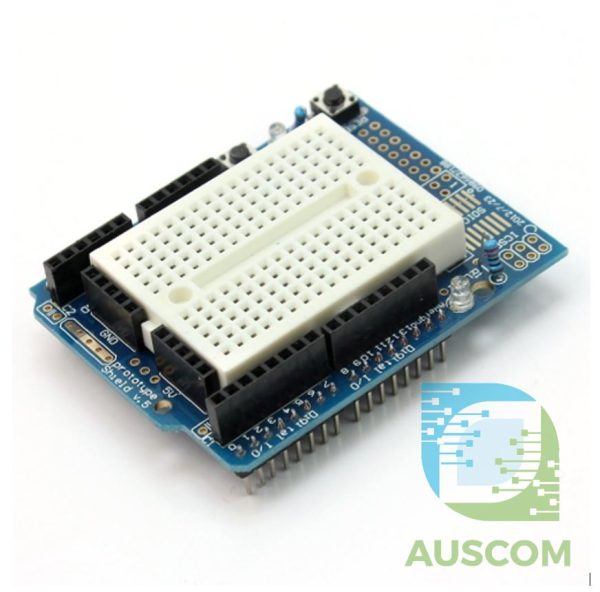

The Arduino Uno Prototype Shield with Mini Breadboard is a practical and flexible expansion board designed to make circuit prototyping faster, cleaner, and more repeatable.

It plugs directly onto an Arduino Uno and provides a large solderable prototyping area, onboard LEDs and switches, and a self-adhesive mini breadboard for rapid, no-solder testing. This makes it ideal for learning, experimentation, and developing Arduino-based projects before committing to a final PCB design.

⭐ Key Features

🧩 Arduino Uno Shield Form Factor
Designed to stack directly onto Arduino Uno boards using standard header alignment.

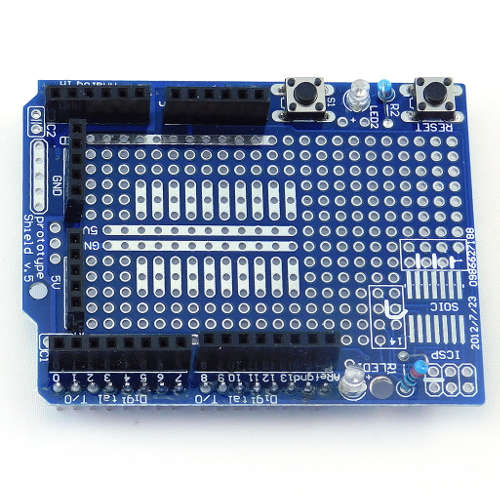

🧱 Large Prototyping Area
Provides ample through-hole pads for soldering components, headers, and custom circuits.

💡 Onboard LEDs & Switches
Includes two general-purpose LEDs and two tactile switches for quick testing, inputs, and indicators.

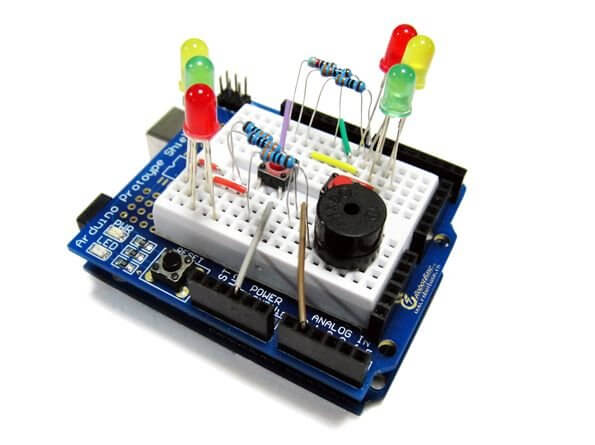

🧪 Mini Breadboard Included
Self-adhesive mini breadboard allows fast, solder-free prototyping and circuit changes.

🔌 Full Pin Access
All Arduino I/O pins are broken out and clearly labelled for easy wiring and expansion.

🛠️ Ideal for Learning & Development
Perfect for testing ideas, building proof-of-concept circuits, and educational use.

📊 Technical Specifications

Board Type: Arduino Uno prototype shield
Compatible Board: Arduino Uno (R3 form factor)
Prototyping Area: Through-hole solder pads
Onboard LEDs: 2 × general-purpose LEDs
Onboard Switches: 2 × tactile push buttons
Breadboard: Mini self-adhesive solderless breadboard
Stacking: Standard Arduino shield headers
PCB Material: FR4

⚠️ Important Notes

• Designed to fit Arduino Uno boards using standard shield headers
• Mini breadboard can be removed or repositioned as needed
• Components on the prototyping area require soldering
• Arduino board not included

🧩 Compatible With

• Arduino Uno R3
• Arduino Uno-compatible boards (Uno footprint)
• Sensors, modules, and jumper wires
• LEDs, resistors, ICs, headers, and discrete components

⚙️ Typical Applications

• Arduino project prototyping
• Learning electronics and embedded systems
• Sensor and module testing
• Rapid proof-of-concept builds
• Educational and classroom projects
• Pre-PCB development and debugging

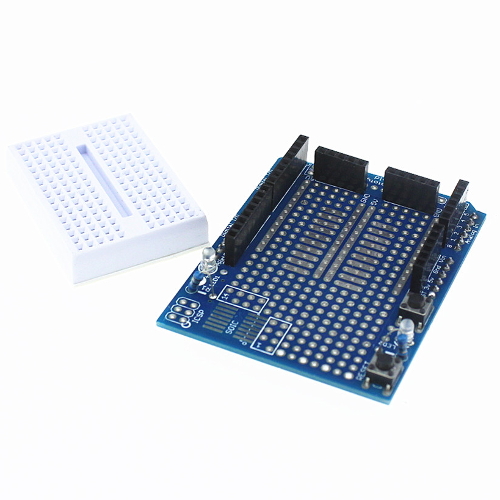

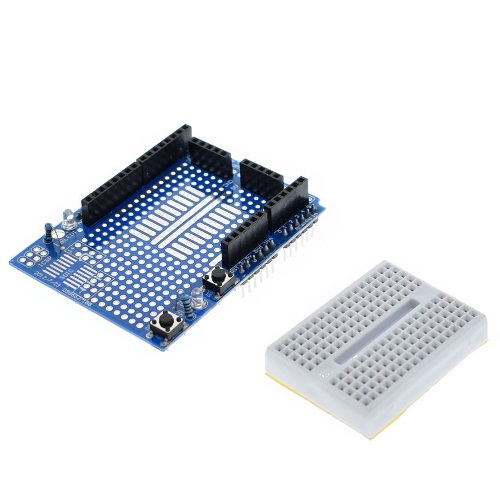

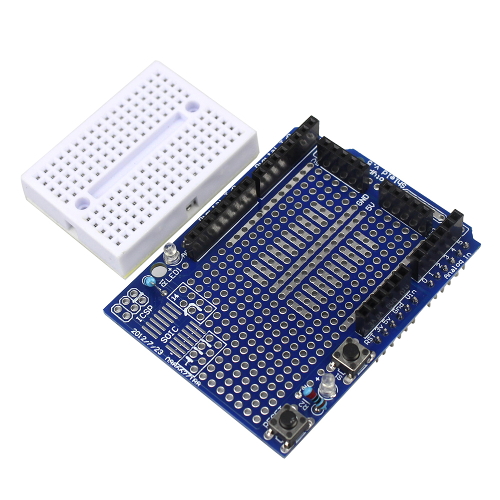

📦 Package Includes

• 1 × Arduino Uno Prototype Shield
• 1 × Mini Solderless Breadboard
