Wemos Mini D1 ESP8266 ESP32 WROOM ESP-32S WIFI Bluetooth CP2104 Development Board Module For Arduino

Description

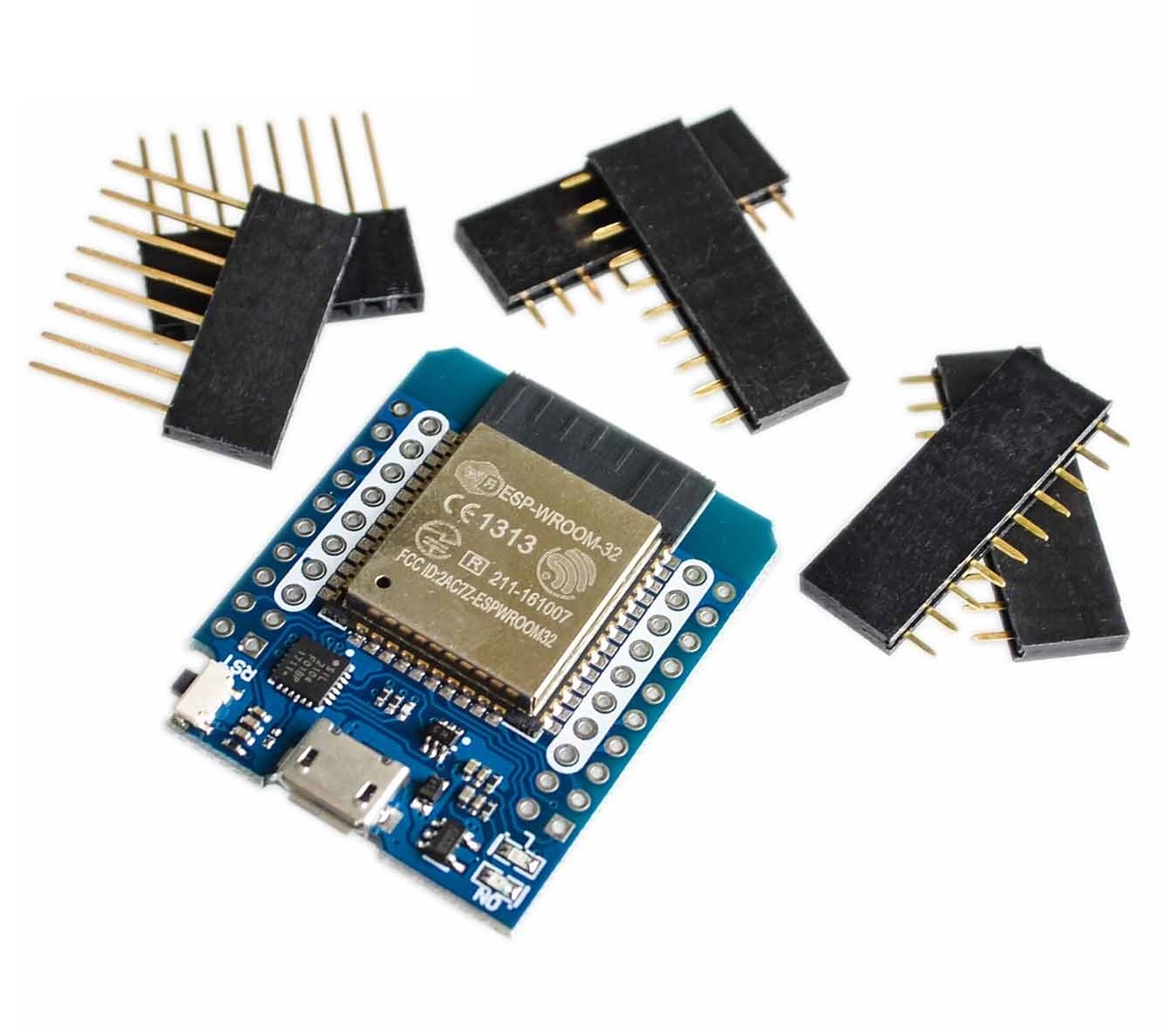

MINI Wemos D1 ESP32/32S WIFI Development Bluetooth ESP8266 Module

Unlock the potential of advanced IoT applications with the MINI Wemos D1 ESP32/32S WIFI Development Bluetooth ESP8266 Module. This module, powered by Espressif’s cutting-edge ESP-WROOM-32 SoC, combines high performance, integrated Wi-Fi and Bluetooth capabilities, and a wide range of peripherals to create a tailored solution for your IoT projects.

Key Features:

• High-Performance SoC: The ESP-WROOM-32 boasts a powerful 240 MHz dual-core Tensilica LX6 microcontroller, delivering 600 DMIPS for efficient processing.
• Ample Memory: Integrated with 520 KB SRAM, this module ensures seamless execution of your applications.
• Wireless Connectivity: Enjoy seamless connectivity with integrated 802.11BGN HT40 Wi-Fi transceiver, supporting data rates of up to 150 Mbps@11n HT40.
• Bluetooth Dual Mode: The module features integrated dual-mode Bluetooth, supporting both classic and BLE (Bluetooth Low Energy) modes.
• Ample Storage: With 16 MByte flash storage, you have space for your applications and data.
• Wide Operating Range: The module operates between 2.2V to 3.6V and handles temperatures from -40°C to +125°C.
• Enhanced Transmit Power: Transmit power of up to 19.5 dBm@11b ensures excellent signal strength.
• Low Power Consumption: In deep sleep, the module draws just 2.5 µA, optimizing power efficiency.
• Robust Security: Support for Wi-Fi Protected Access (WPA)/WPA2/WPA2-Enterprise/Wi-Fi Protected Setup (WPS) ensures your data remains secure.

Wi-Fi and Bluetooth Capabilities:

• 802.11 Standards: The module supports 802.11 b/g/n/e/i standards, delivering speeds of up to 150 Mbps for seamless connectivity.
• Bluetooth Compatibility: Class-1, class-2, and class-3 transmitters, with Bluetooth v4.2 BR/EDR and BLE compatibility.
• Adaptive Frequency Hopping: Ensure reliable Bluetooth connections with Adaptive Frequency Hopping (AFH) technology.
• BLE Profiles: Support for various Bluetooth profiles, including ATT/GATT, SPP-Like GATT-based profiles, and BLE Beacon.

Package Includes:

• 1x MINI Wemos D1 ESP32/32S WIFI Development Bluetooth ESP8266 Module
• 4x Long Female Pins
• 4x Short Female Pins
• 4x Normal Pins

Unleash your IoT creativity with the MINI Wemos D1 ESP32/32S WIFI Development Bluetooth ESP8266 Module. Its powerful capabilities and versatile connectivity options make it a must-have for your IoT projects. Whether you’re a hobbyist or a professional, this module has the tools to bring your ideas to life.
