Description
Enhance Your Control with GEYA GRT8-A Electronic Time Relay – Available in 12V, 24V, and 220V AC/DC
Discover the exceptional control capabilities of the GEYA GRT8-A Electronic Time Relay. Engineered for precision and convenience, this relay offers a seamless solution for managing time-based functions in various applications. With its versatile features and robust design, it’s the ideal choice for tasks that demand accurate time delays.
Key Features:

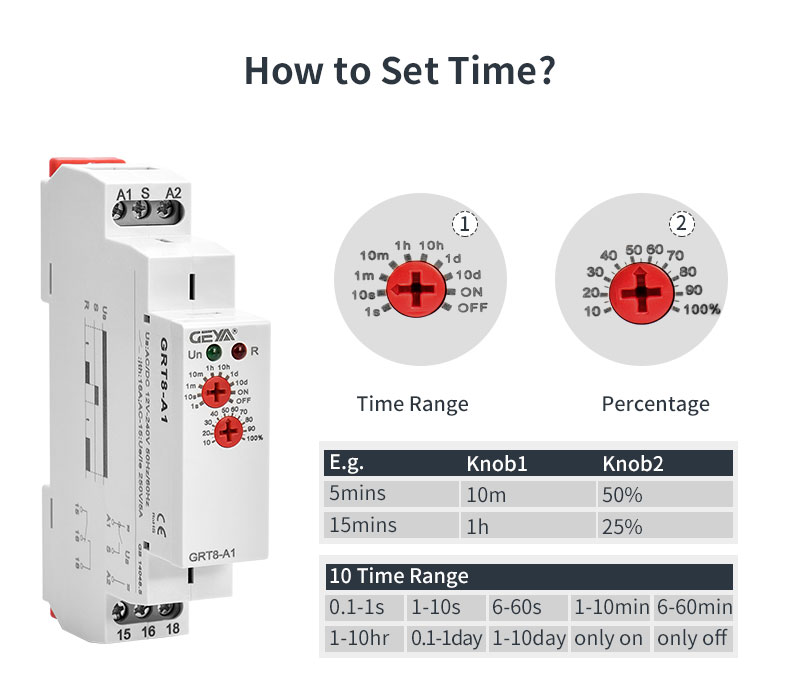

- Customizable Timing: Seamlessly adjust time settings using the built-in potentiometer. Achieve precise time delays tailored to your specific needs.

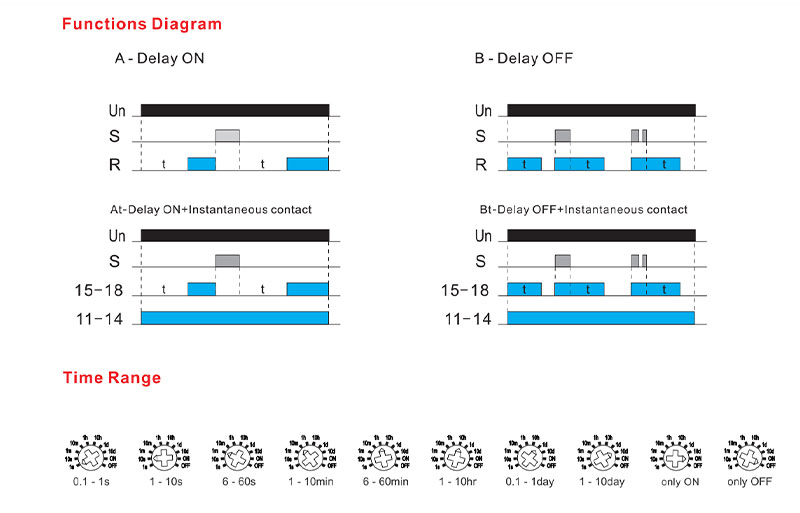

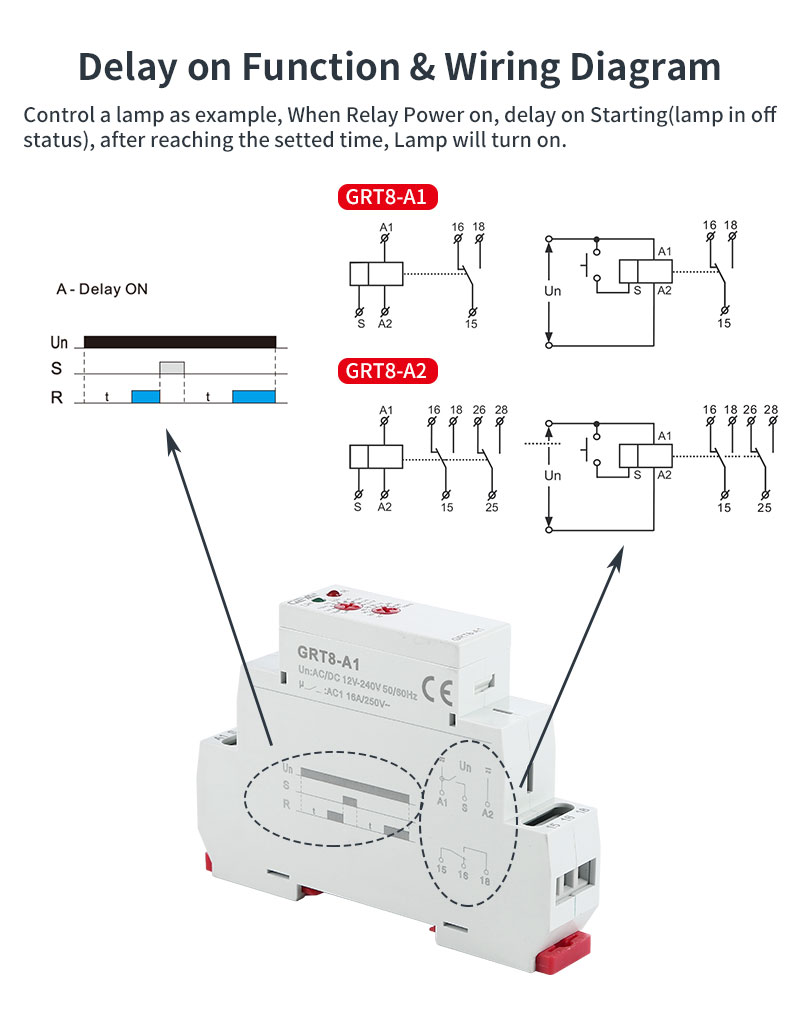

- Multiple Functions: Choose between two distinct functions to meet your requirements: A: Delay ON – For situations demanding a delayed activation. B: Delay OFF – Perfect for scenarios requiring a delayed deactivation.
- Fine-Tuned Time Scale: Operate within a time scale of 0.1 seconds, allowing for granular control over your timed actions.
- Flexible Time Ranges: With 10 distinct time ranges spanning over 10 days, you can easily adapt the relay’s performance to your unique scheduling needs.

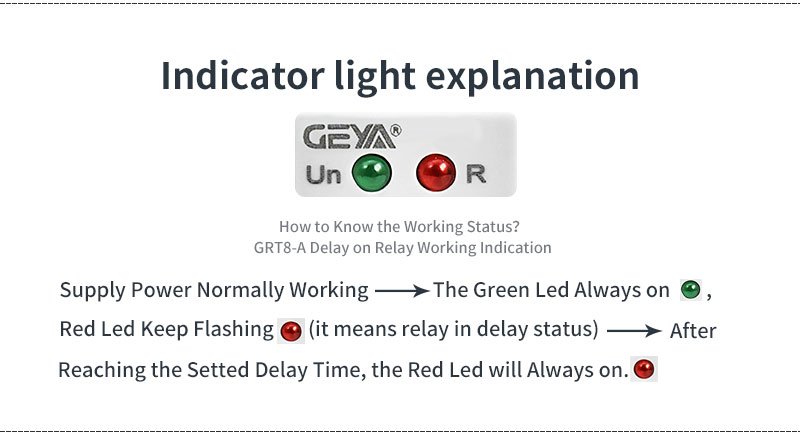

- Visual Status Indicator: Keep track of the relay’s status effortlessly with the intuitive LED indicator. Stay informed about its operation at a glance.

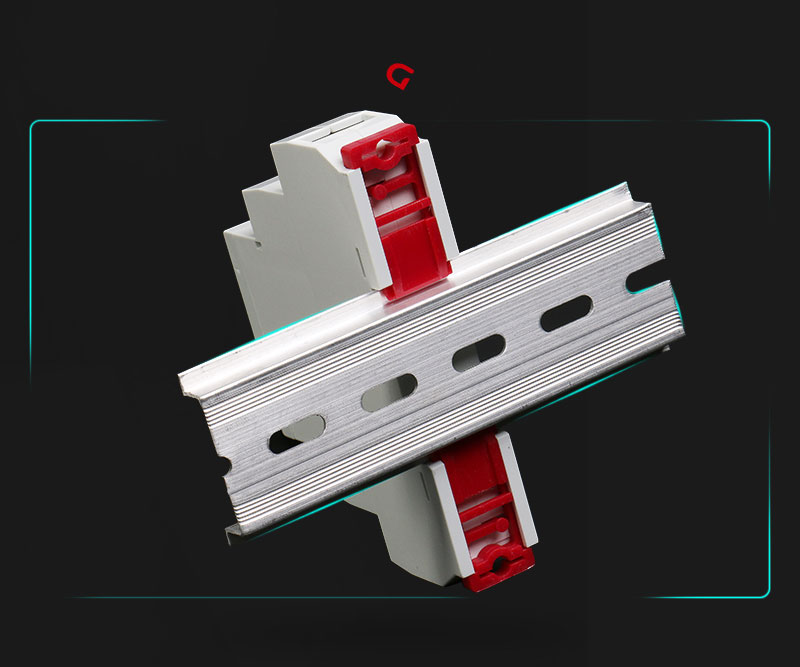

- Space-Efficient Design: Designed to optimize your space, the relay occupies just 1 module and is effortlessly mounted on a DIN rail.
Description:
Crafted to excel in scenarios where specific function and timing requirements are essential, the GEYA GRT8-A Electronic Time Relay is your answer to precision control. Whether you’re managing pump decay time post-heating deactivation or orchestrating fan shutdowns, this relay empowers you with accuracy and reliability.
Take command of your timing needs with the GEYA GRT8-A Electronic Time Relay. Experience enhanced efficiency and control like never before. Choose the voltage variant that suits your setup – 12V, 24V, or 220V AC/DC. Elevate your operations today.

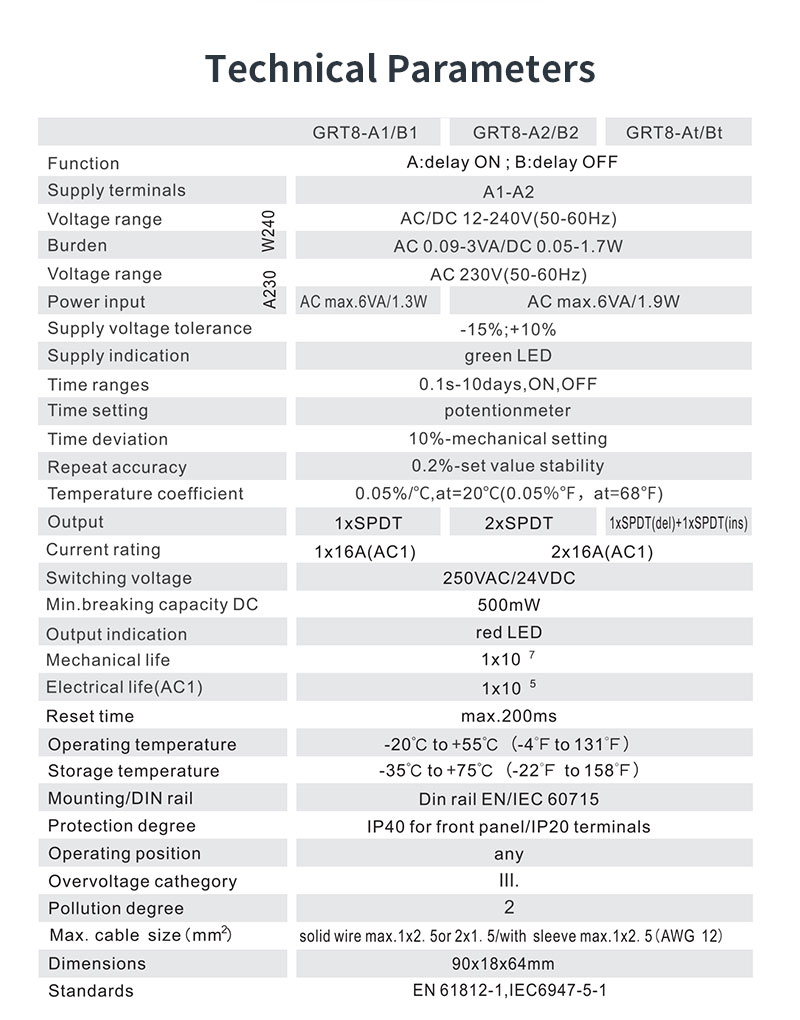

| Technical parameters | GRT8-A1/B1 | GRT8-A2/B2 | GRT8-At/Bt |
| Function | A: delay ON; B: delay OFF | ||
| Supply terminals | A1-A2 | ||
| Voltage range | AC/DC 12-240V(50-60Hz) | ||
| Burden | AC 0.09-3VA/DC 0.05-1.7W | ||
| Voltage range | AC 230V(50-60Hz) | ||
| Power input | AC max.6VA/1.3W | AC max.6VA/1.9W | |
| Supply voltage tolerance | -15%;+10% | ||
| Supply indication | green LED | ||
| Time Ranges | 0.1s-10days,ON,OFF | ||
| Time setting | potentiometer | ||
| Time deviation | 10%-mechanical setting | ||
| Repeat accuracy | 0.2%-set value stability | ||
| Temperature coefficient | 0.05%/℃,at=20℃(0.05%℉，at=68℉) | ||
| Output | 1×SPDT | 2×SPDT | 1×SPDT（del）+1×SPDT(ins） |
| Current rating | 16A(AC1) | ||
| Switching voltage | 250VAC/24VDC | ||
| Min.breaking capacity DC | 500mW | ||
| Output indication | red LED | ||
| Mechanical life | 1×107 | ||
| Electrical life(AC1) | 1×105 | ||
| Reset time | max.200ms | ||
| Operating temperature | -20℃ to+55℃（-4℉to131℉） | ||
| Storage temperature | -35℃ to+75℃（-22℉to158℉） | ||
| Mounting/DIN rail | Din rail EN/IEC 60715 | ||
| Protection degree | IP40 for front panel/IP20 terminals | ||
| Operating position | any | ||
| Overvoltage category | III. | ||
| Pollution degree | 2 | ||
| Max.cable size(mm 2) | solid wire max.1×2.5or 2×1.5/with sleeve max.1×2.5(AWG 12) | ||
| Tightening torque | 0.4Nm | ||

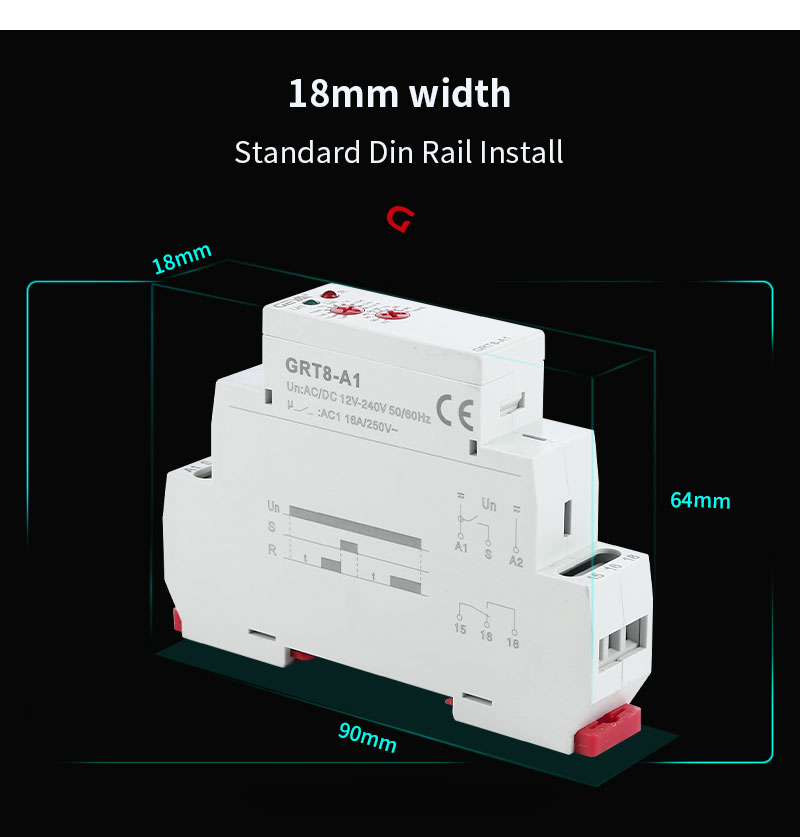

| Dimensions | 90×18×64mm | ||
| Weight | W240-61g,A230-61g | W240-81g,A230-80g | |
| Standards | EN 61812-1,IEC6947-5-1 | ||
Additional information
| Weight | 85 g |
|---|---|
| Dimensions | 95 × 75 × 25 mm |
| Model | GRT8-A1, GRT8-A2 |
