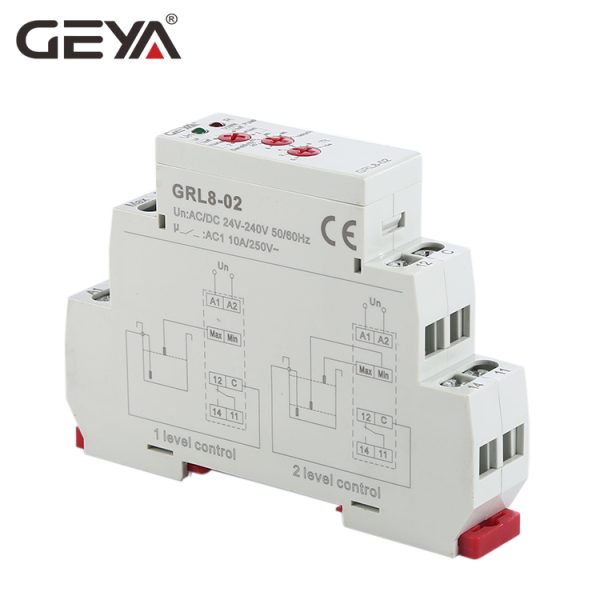

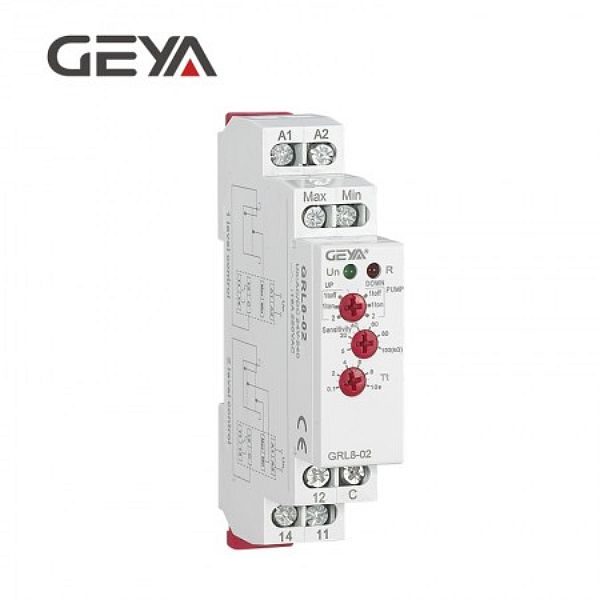

GEYA GRL8 Liquid Level Control Relay Electronic Controller 10A AC/DC24V-240V

Description

GEYA GRL8 Liquid Level Control Relay Electronic Controller 10A AC/DC24V-240V

Enhance your control over liquid levels with the advanced GEYA GRL8 Liquid Level Control Relay Electronic Controller. This versatile device is tailored for a wide range of applications, including monitoring levels in wells, basins, reservoirs, and tanks.

Key Features and Benefits:

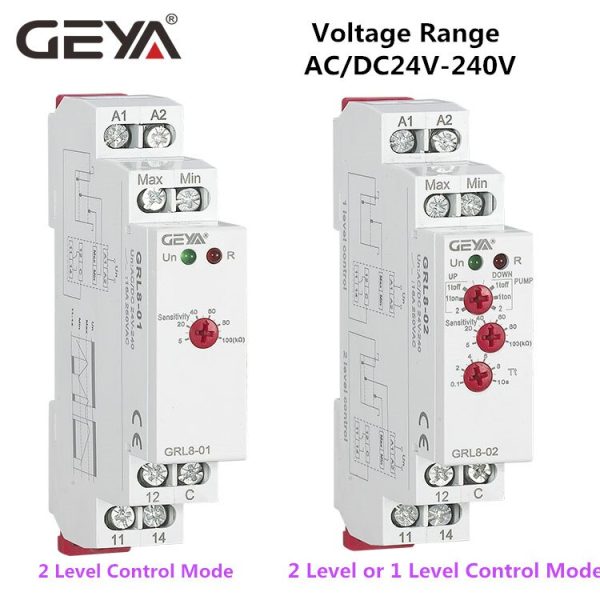

1. Multiple Configurations in One Device: The GEYA GRL8 offers a variety of configuration options within a single unit:
   • GRL8-01: Choose between 2-level control mode.
   • GRL8-02: Opt for either 2-level or 1-level control mode.
2. Flexible Pump Control Options: Tailor your system to your needs with the choice of pump control modes:
   • PUMP UP: Elevate liquid levels when needed.
   • PUMP DOWN: Lower liquid levels as required.
3. Customizable Time Delay: Enjoy the convenience of an adjustable time delay on the output, ranging from 0.1 to 10 seconds. This ensures precise control and prevents abrupt changes.
4. Fine-Tuned Sensitivity: Achieve optimal responsiveness with sensitivity adjustment through a potentiometer. Set the sensitivity between 5 and 100K to match your specific requirements.
5. Reliable Galvanic Separation: Benefit from galvanically separated supply voltage support, accommodating both AC and DC within the 24-240V range. This ensures stable operation and enhanced safety.
6. Robust Output Performance: The device features a single-pole, double-throw (SPDT) relay with a 10A/AC1 rating, ensuring consistent and efficient performance.
7. Clear LED Indicator: Instantly grasp the relay status through the LED indicator, providing visual confirmation of operation.
8. Compact and Mountable: Designed for practicality, the GEYA GRL8 fits seamlessly into your setup. With its 1-MODULE size and DIN rail mounting, installation is hassle-free.

Upgrade your liquid level control with the GEYA GRL8 Electronic Controller, offering a blend of versatility, precision, and reliability. Elevate your monitoring capabilities today.
