5 in stock

Sku:PM7221

$392.00 Inc. GST

5 in stock

Quantity Discount (%) Price
1 $392.00
2 - 4 5 % $372.40
5 - 9 7.5 % $362.60
10 - 19 10 % $352.80
20+ 15 % $333.20
Compare

Features:

1. 100% brand new and high quality.

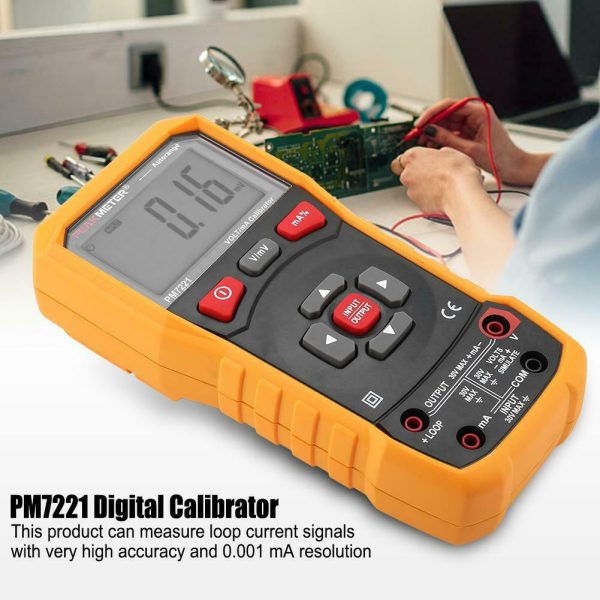

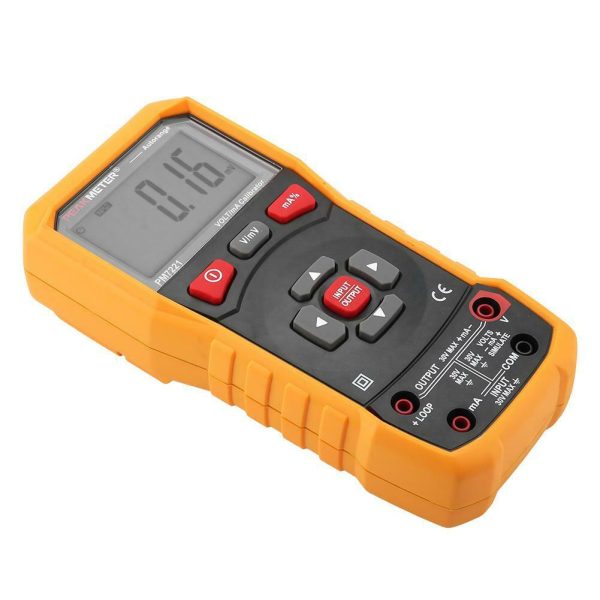

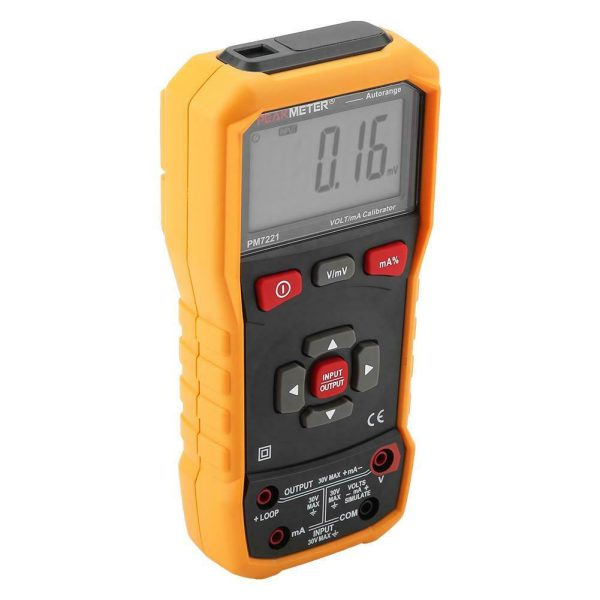

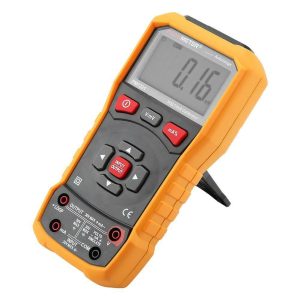

2. PM7221 voltage and current calibrator is a source and measurement tool.

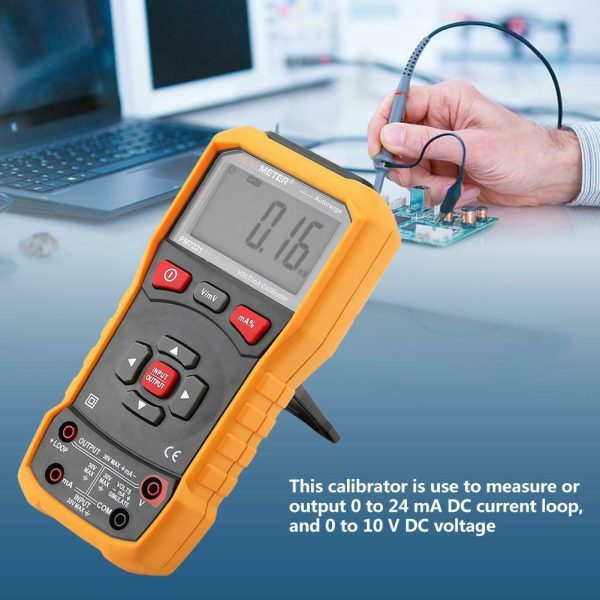

3. This calibrator is used to measure or output 0 to 24 mA DC current loop, and 0 to 10 V DC voltage.

4. This product can measure loop current signals with very high accuracy and 0.001 mA resolution.

5. The calibrator measure voltage output process signals from PLCs, transmitters



Specification:

Condition: 100% Brand New

Model: PM7221

Function Range Resolution
DC Voltage Input 0 ~ 100 mV 0.01 mV
0 ~ 10 V 0.001 V
Range Resolution Precision 0 ~ 100 mV 0.01 mV
100 mV 0.01 mV 0.02 % + 2
10 V 0.001 V 0.02 % + 2
InputResistance: 2MΩ (nominal), < 100pF
Overvoltage Protection:30 V
VoltageDriveFunction: 1 mA
DC Voltage Output 0 ~ 10 V 0.001 V
Loop PowerOutput 24VDC Output No
Measuring Output Current Parameter:
Current Input/Output
Range Resolution Precision
24 mA 0.001mA 0.015 % + 2
OverloadProtection: mA, 250V Fast Melt fuse
PercentDisplay: 0%=4mA, 100%=20mA
CurrentSourceMode: Compliance with battery voltage ≥ 6.8V, 1000 Ω at 20 mA

Weight: Approx. 627g / 22.1oz

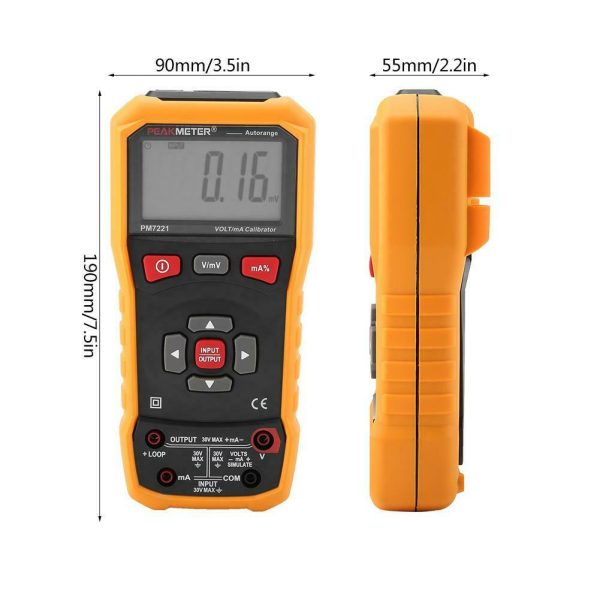

Size: Approx. 190 * 90 * 55mm / 7.5 * 3.5 * 2.2in

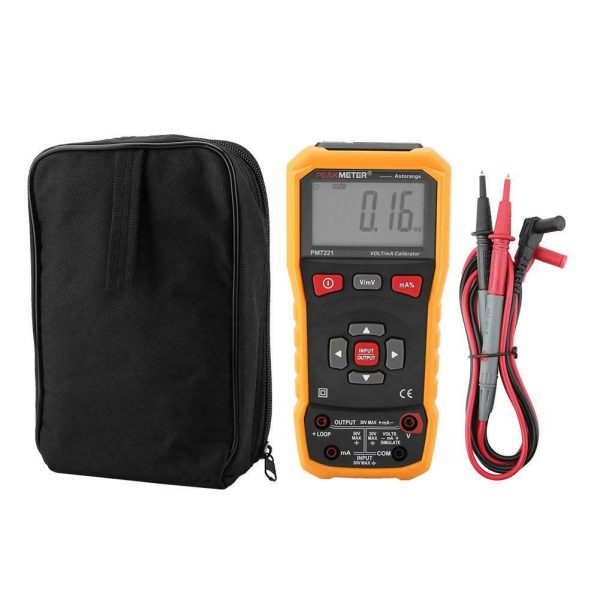

Package List:

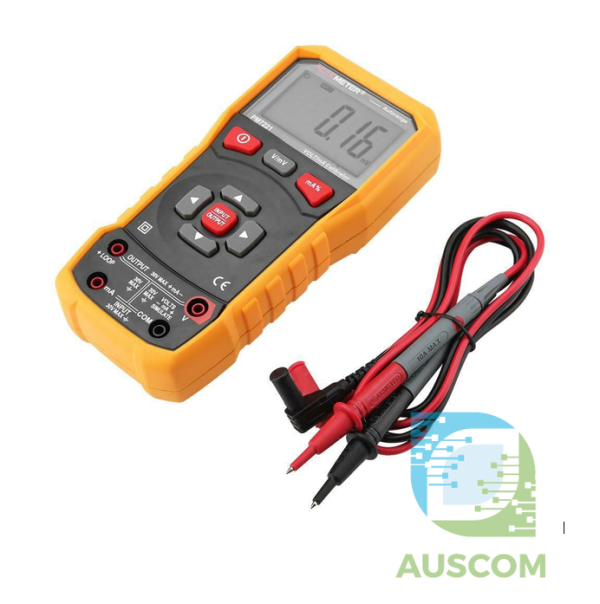

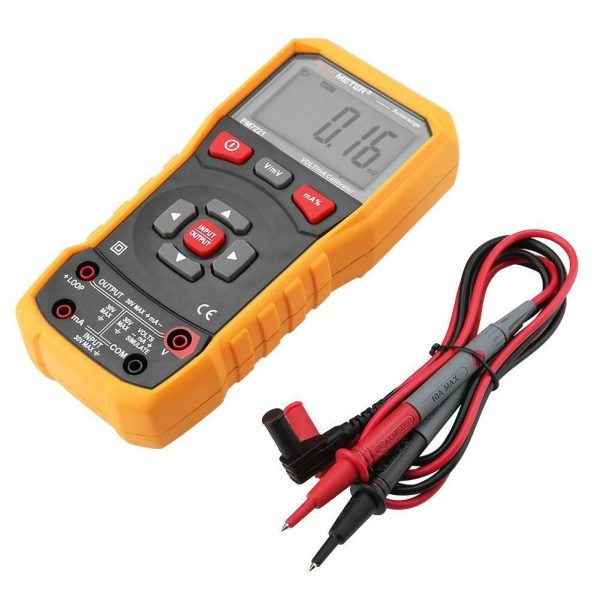

1 * PM7221 Voltage and Current Calibrator

2 * Test Leads

1 * Bag



Note:

Battery is not included.



Weight 627 g
Dimensions 210 × 130 × 60 mm
