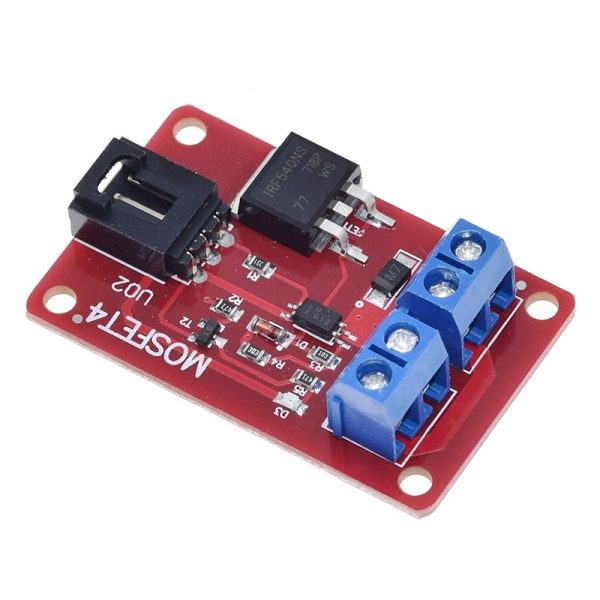

1 Channel 1 Route IRF540 MOSFET Switch Module for Arduino - Image 1

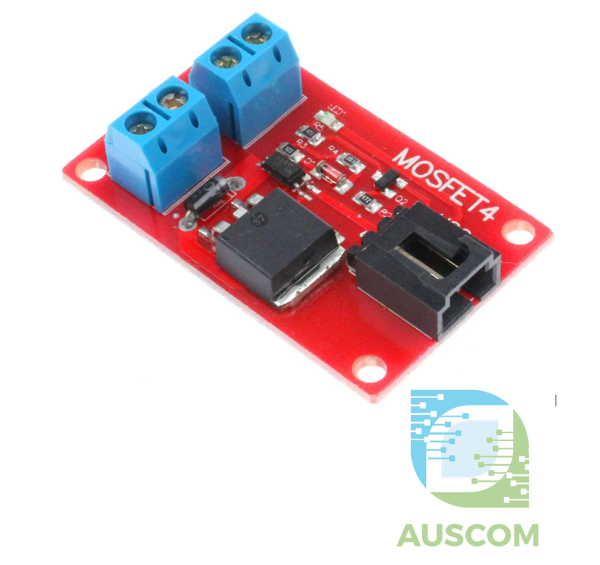

1 Channel 1 Route IRF540 MOSFET Switch Module for Arduino - Image 2

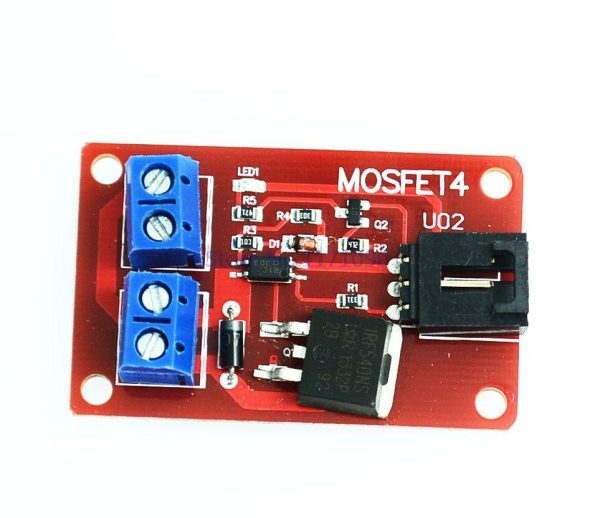

1 Channel 1 Route IRF540 MOSFET Switch Module for Arduino - Image 3

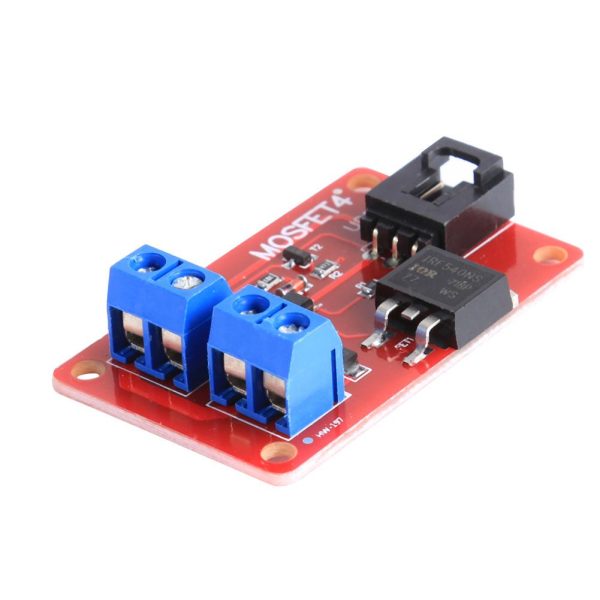

1 Channel 1 Route IRF540 MOSFET Switch Module for Arduino - Image 4

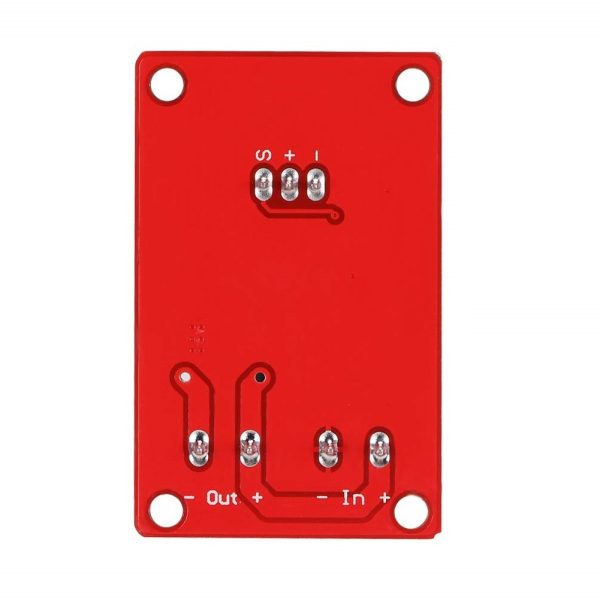

1 Channel 1 Route IRF540 MOSFET Switch Module for Arduino - Image 5

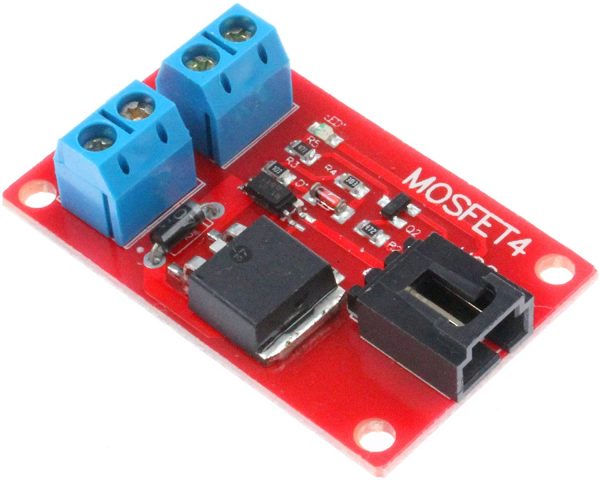

1 Channel 1 Route IRF540 MOSFET Switch Module for Arduino - Image 6

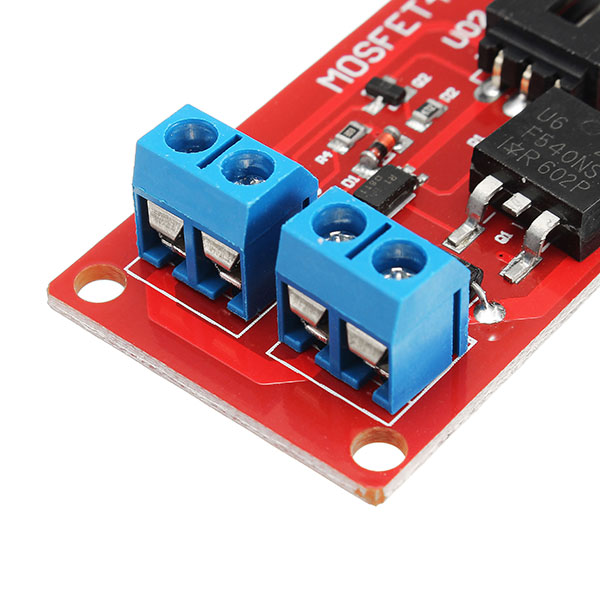

1 Channel 1 Route IRF540 MOSFET Switch Module for Arduino - Image 7

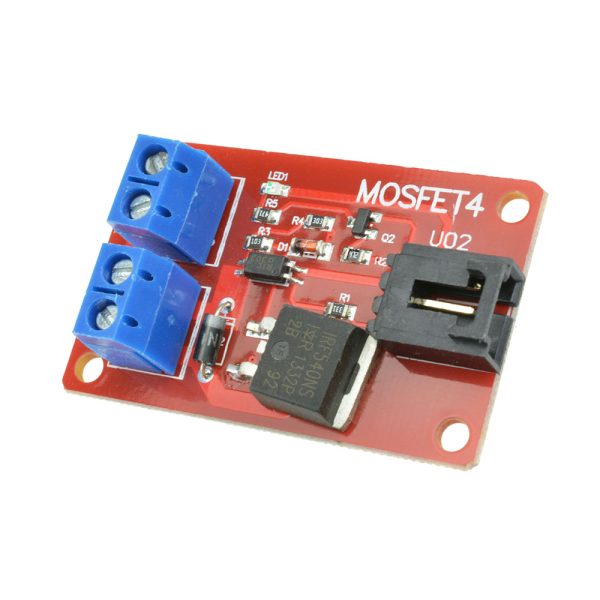

1 Channel 1 Route IRF540 MOSFET Switch Module for Arduino - Image 8

1 Channel 1 Route IRF540 MOSFET Switch Module for Arduino

Four Channel MOSFET IRF540 V4.0+ MOSFET Switch Module Arduino
0 out of 5
( There are no reviews yet. )

$5.60 Inc. GST
You save (%)

Availability: 17 in stock Category:
Quantity Discount (%) Price
1 — $5.60
2 - 4 5 % $5.32
5 - 9 7.5 % $5.18
10 - 19 10 % $5.04
20 - 49 12.5 % $4.90
50 - 99 15 % $4.76
100+ 17.5 % $4.62

Description

Experience Efficient Control: Elevate your circuit control capabilities with the 1 Channel 1 Route IRF540 MOSFET Switch Module designed for seamless integration with Arduino projects. Unveil the power of MOSFET technology, an electronic wonder recognized for its stellar switching performance, making it a cornerstone in applications like switching power supplies, motor drives, and lighting dimming.

Unleash the Advantages: Distinct from the familiar yet mechanically-inclined relays, our module harnesses MOSFET’s prowess to provide rapid switching without the limitations of mechanical contacts. No more bothersome click sounds or momentary lapses; instead, experience reliable and efficient circuit control.

Adaptable Design: Seamlessly aligning with Arduino electronic building blocks, this module is a perfect match for IRF540 MOSFET switches. Though the concept remains consistent, we’ve introduced a refined approach for better usability. Referencing the well-established Arduino 1-way switch with IRF540 MOSFET Modules, our design presents a versatile solution to govern diverse circuit modules.

Optimized Applications: Dive into a world of possibilities as our MOSFET switch enables precision control over DC circuits. Illuminate DC LED screens and more, enhancing your projects with newfound accuracy. Please note that this module is tailored for DC circuits and may not suit AC circuit applications.

Robust Performance: When circumstances demand, our MOSFET switch rises to the occasion, capably managing a 100V / 33A DC circuit. For optimal results, we recommend employing a minimum DC voltage of 9V for control operations.

Seamless Implementation: Embark on experimentation with confidence, starting with a simple yet illuminating test scenario featuring a single LED light.

Sample Code
int s1Pin = 6;
void setup() {
pinMode(s1Pin, OUTPUT);
}
void loop() {
digitalWrite(s1Pin, HIGH);
delay(500);
digitalWrite(s1Pin, LOW);
delay(500);
}

All-Inclusive Package: Your purchase includes a comprehensive package featuring the 1 Channel 1 Route MOSFET Button IRF540 + MOSFET Switch Module tailored for Arduino integration. Elevate your circuit control to new heights with this versatile and powerful module.

📌 Code Examples & Usage – 1-Channel IRF540 MOSFET Switch Module

📋 Overview

This 1-channel MOSFET switch module uses an IRF540 N-channel MOSFET to allow a low-power microcontroller signal to switch higher-current DC loads.

Typical applications include:

  • DC motors

  • LED strips

  • Solenoids & valves

  • Pumps & fans

  • Heaters

  • PWM speed or brightness control

The module provides signal isolation and screw terminals, making it easy to integrate into Arduino and ESP32 projects.

⚠ IMPORTANT – Read Before Use

🚨 This is a DC load switch only

  • Designed for DC loads

  • NOT suitable for AC mains

  • Load voltage and current must stay within the MOSFET rating

  • IRF540 is not a true logic-level MOSFET (see notes below)

✔ Best used with 5V Arduino outputs
✔ ESP32 (3.3V) works but with reduced performance on high loads

⚙ Key Specifications (Typical)

  • MOSFET: IRF540

  • Control signal: 3.3V – 5V

  • Load voltage: Up to ~24V DC (module dependent)

  • High current capability (with proper cooling)

  • Supports PWM control

🔌 Terminal & Pin Overview

Control Side (Low Voltage)

Pin Function
SIG / IN Control signal from MCU
VCC 5V (logic power, if required by module)
GND Ground

Load Side (High Current)

Terminal Function
V+ Load power positive
OUT- / DRAIN Switched negative to load

📌 This is a low-side switch
(The MOSFET switches the ground side of the load)

🔌 Typical Wiring – Arduino

Example: Switching a 12V DC Load

  • Arduino D5 → MOSFET SIG

  • Arduino GND → MOSFET GND

  • External 12V+ → Load +

  • Load – → MOSFET OUT

  • External 12V– → MOSFET GND

⚠ Arduino GND and load supply GND must be connected together

🧪 1️⃣ Arduino Example – Simple ON / OFF Control

const int mosfetPin = 5;

void setup() {
pinMode(mosfetPin, OUTPUT);
}

void loop() {
digitalWrite(mosfetPin, HIGH); // Load ON
delay(2000);

digitalWrite(mosfetPin, LOW); // Load OFF
delay(2000);
}

✔ Ideal for pumps, fans, relays, heaters
✔ Simple and reliable

🧪 2️⃣ Arduino Example – PWM Control (Speed / Brightness)

const int mosfetPin = 5;

void setup() {
pinMode(mosfetPin, OUTPUT);
}

void loop() {
for (int duty = 0; duty <= 255; duty++) {
analogWrite(mosfetPin, duty);
delay(10);
}

for (int duty = 255; duty >= 0; duty--) {
analogWrite(mosfetPin, duty);
delay(10);
}
}

✔ Use for:

  • Motor speed control

  • LED dimming

  • Heater power control

🧪 3️⃣ ESP32 Example – PWM (LEDC)

const int mosfetPin = 18;
const int pwmChannel = 0;

void setup() {
ledcSetup(pwmChannel, 1000, 8); // 1kHz, 8-bit
ledcAttachPin(mosfetPin, pwmChannel);
}

void loop() {
for (int duty = 0; duty <= 255; duty++) {
ledcWrite(pwmChannel, duty);
delay(10);
}

for (int duty = 255; duty >= 0; duty--) {
ledcWrite(pwmChannel, duty);
delay(10);
}
}

⚠ ESP32 outputs 3.3V, which may reduce max current with IRF540
👉 For high loads, a logic-level MOSFET (IRL series) is recommended

⚡ Inductive Load Protection (VERY IMPORTANT)

If you are switching inductive loads such as:

  • Motors

  • Solenoids

  • Valves

  • Pumps

You MUST add a flyback diode across the load.

Recommended diode:

  • 1N4007 (general use)

  • Schottky diode for faster switching

Diode orientation:

  • Cathode (stripe) → V+

  • Anode → MOSFET output

This protects the MOSFET from voltage spikes.

🧠 IRF540 Logic-Level Note (Important)

The IRF540:

  • Fully turns on at ~10V gate

  • Partially turns on at 5V

  • Works at 3.3V, but with higher resistance and heat

✔ Fine for low-to-medium loads
✔ For best performance with ESP32:

  • Use lower current

  • Or choose a logic-level MOSFET module (IRLZ44N, AO3400, etc.)

🧠 Tips & Best Practices

✔ Use heatsink for high current loads
✔ Keep load wiring short and thick
✔ Avoid long PWM cables
✔ Add flyback diode for inductive loads
✔ Do not exceed module ratings

Additional information

Weight 50 g
Dimensions 260 × 160 × 20 mm
