In Stock

Sku:N/A

$9.80 Inc. GST

Clear selection
Compare

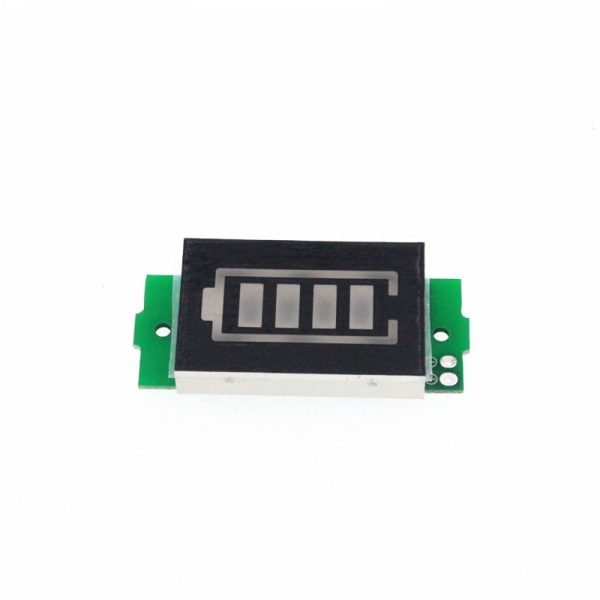

Features:

1.Battery type electricity quantity display

2.Wide application fields: lithium battery

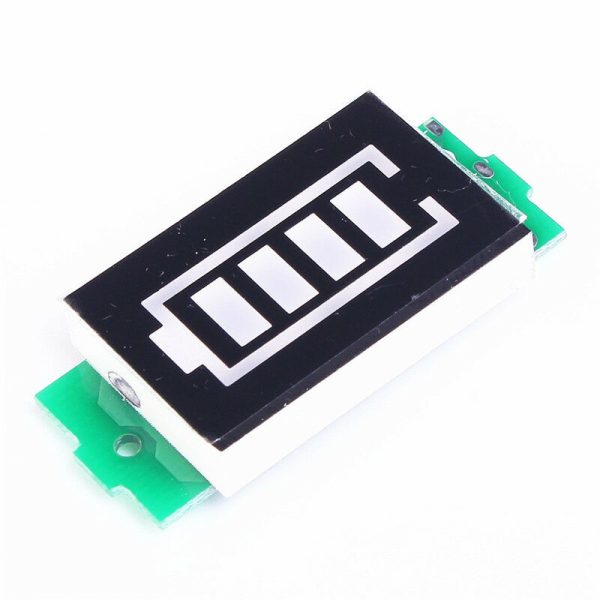

3.Using Method: connect display board positive and negative port with tested battery positive and negative port, digital tube will display real-time battery electricity quantity

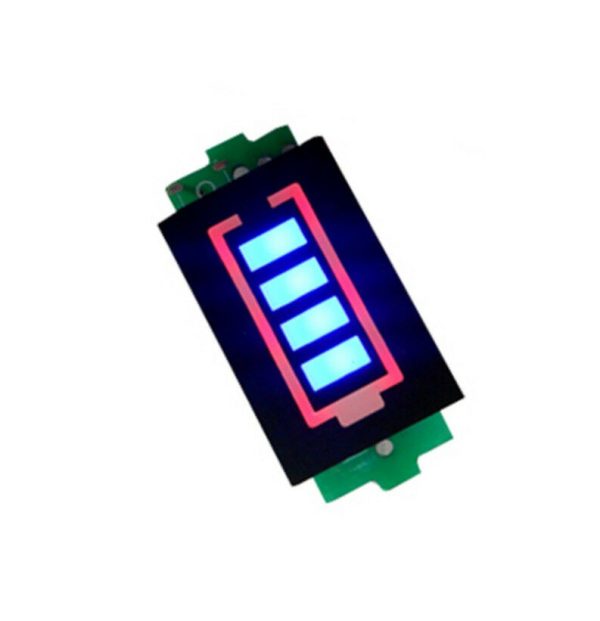

4.Digital Color: outline red, display block blue (when battery electricity quantity is full, it will be all on)

Features:
1.Battery type electricity quantity display
2.Wide application fields: lithium battery
3.Using Method: connect display board positive and negative port with tested battery positive
and negative port, digital tube will display real-time battery electricity quantity
4.Digital Color: outline red, display block blue (when battery electricity quantity is full,
it will be all on)

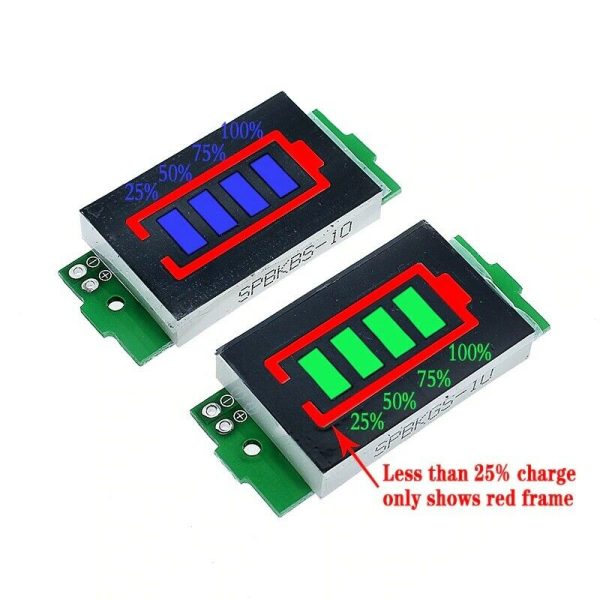

Display Electricity Quantity Parameter:
1.When battery voltage is over N*3.3V,it will illuminate 1 block electricity quantity
2.When battery voltage is over N*3.5V,it will illuminate 2 blocks electricity quantity
3.When battery voltage is over N*3.7V,it will illuminate 3 blocks electricity quantity
4.When battery voltage is over N*3.9V,it will illuminate 4 blocks electricity quantity
5.When battery voltage is less than N*3.3V,4 blocks display will be off; it represents battery is less than 3.3V, and you can charge the battery



(note: N represents battery quantity)

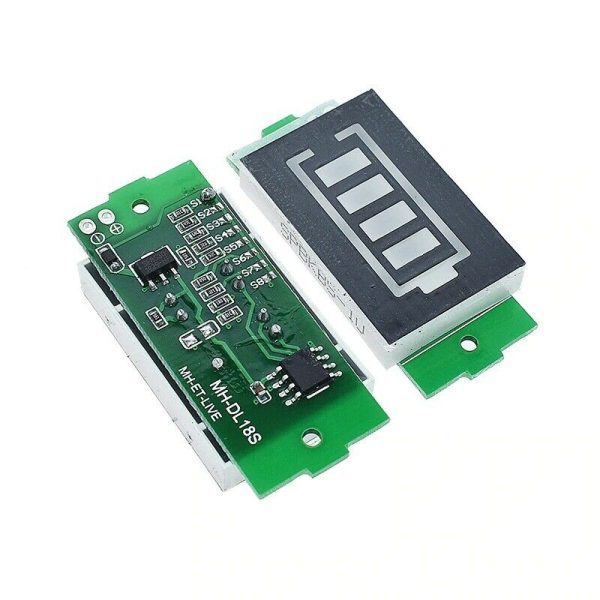

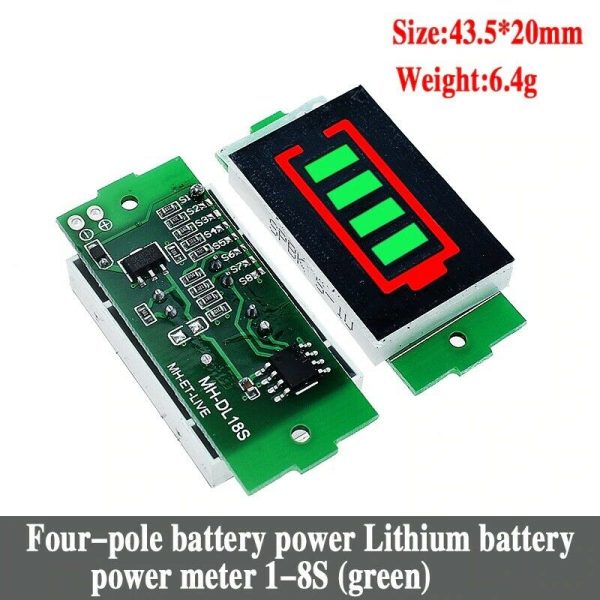

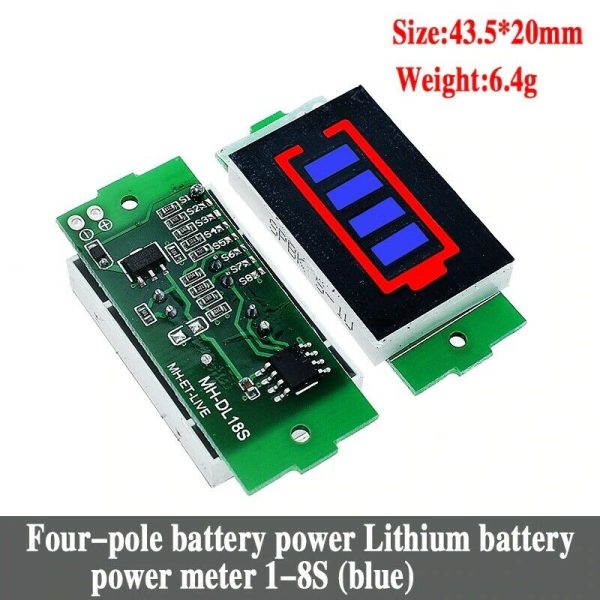

Battery-type power display, select the corresponding pad on the tin, you can detect the battery voltage corresponding to 1S-8S, very convenient.

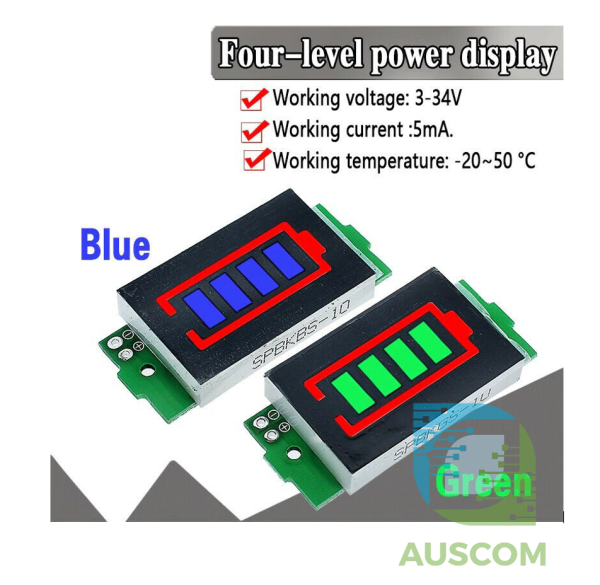

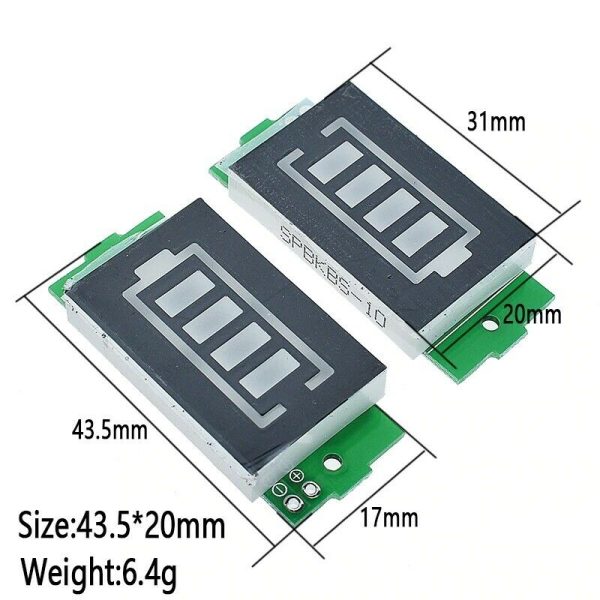

Product parameters: 1、Working voltage: 3-34V, working current 5mA. 2、Working temperature: -20~50 °C 3、The voltage error is 2% (requires higher accuracy, do not shoot) 4、Size: 43.5 * 20cm

Warm sound tips: This model is not waterproof. If it is used outdoors, please waterproof it, because the electronic components should be used in a dry environment. Lithium-ion battery The battery indicator board that can be used in Ni-MH batteries, as long as the required voltage is within the range of the parameter list. How to use: Connect the positive and negative terminals of the display board to the positive and negative terminals of the battery under test. The digital tube displays the real-time battery power.

1. Battery-type power display, select the corresponding pad on the tin, you can detect the battery voltage corresponding to 1S-8S, very convenient.

Weight 50 g
Dimensions 260 × 160 × 20 mm
Colour

Blue, Green
