Voltage Sensor Module Electronic Test Blocks Arduino PIC AVR

$4.95 Inc. GST

Availability: 79 in stock SKU: 6-3-4-1 Category:
Quantity Discount (%) Price
1 $4.95
2 - 4 5 % $4.70
5 - 9 7.5 % $4.58
10 - 19 10 % $4.46
20 - 49 12.5 % $4.33
50 - 99 15 % $4.21
100+ 17.5 % $4.08
Compare Compare

Description

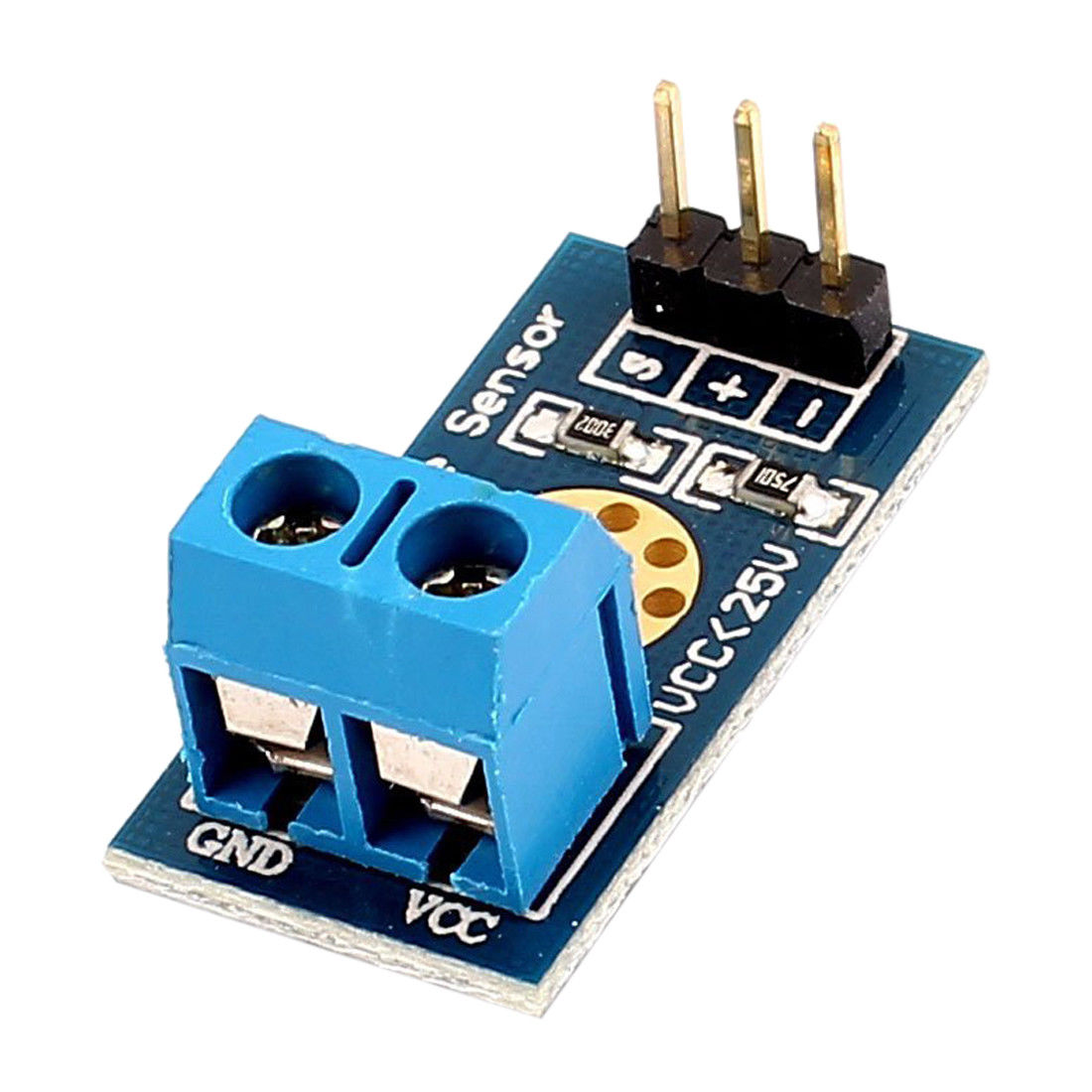

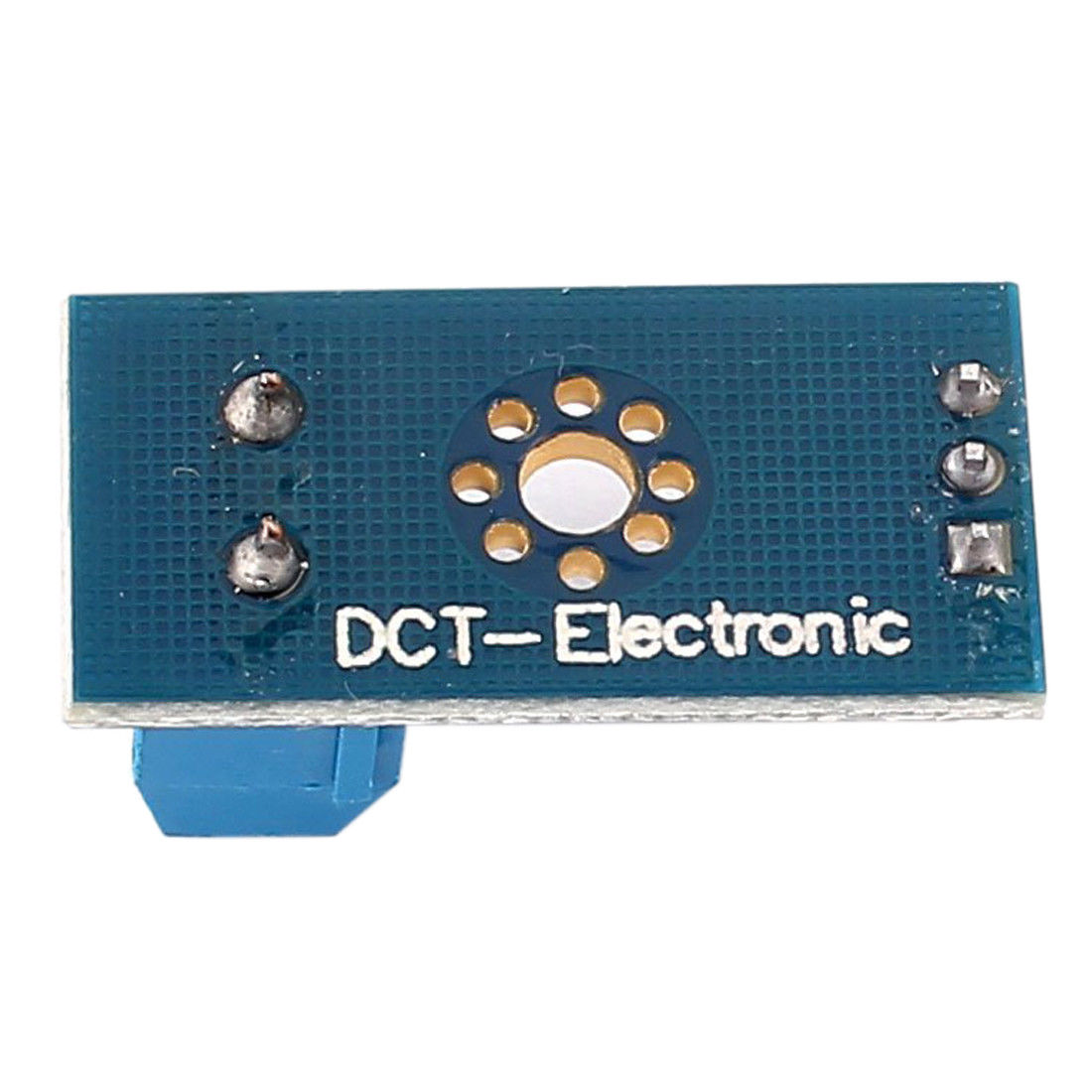

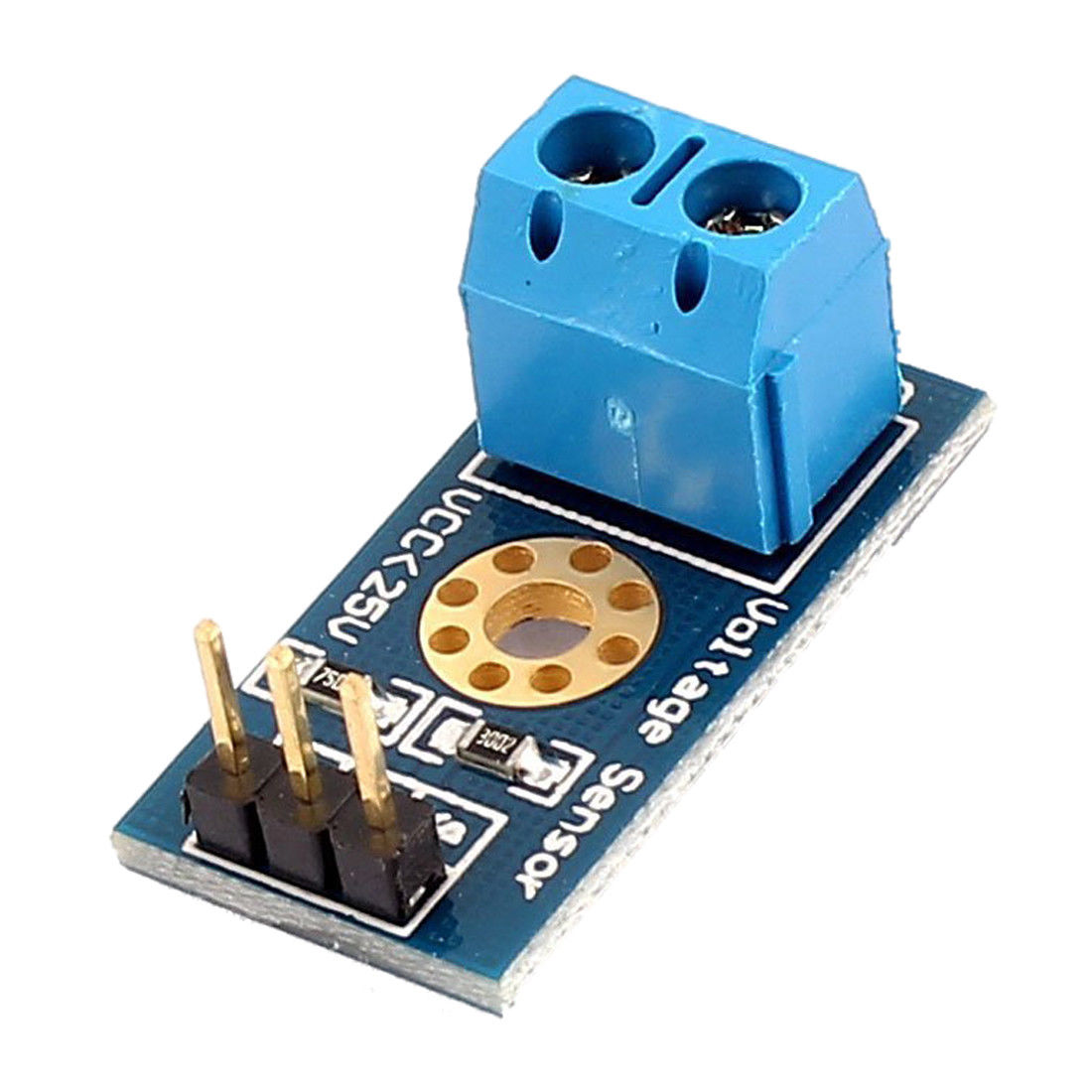

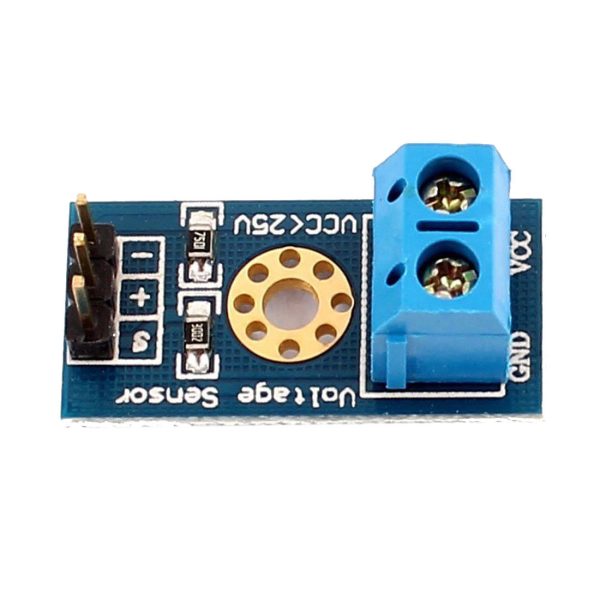

Introducing the Voltage Sensor Module for Electronic Testing – Ideal for Arduino, PIC, and AVR Projects

Discover unparalleled precision and efficiency with our brand-new Voltage Sensor Module, meticulously designed to elevate your electronic testing endeavors. Whether you’re a seasoned Arduino enthusiast, a PIC aficionado, or an AVR connoisseur, this module is your gateway to accurate voltage measurements and unparalleled performance.

Key Features:

  • High-Quality Construction: Crafted with unwavering attention to detail, this module guarantees exceptional quality and reliability for your testing needs.
  • Compact Design: With dimensions of approximately 25mm x 13mm (0.98″ x 0.51″), our module’s compact size ensures seamless integration into your projects without sacrificing performance.
  • Resistive Voltage Divider Principle: Built upon the innovative resistive voltage divider principle, this module enables you to reduce input voltages at the red terminal connector by a factor of 5. This means that even Arduino analog input voltages of up to 5V can be efficiently managed.
  • Wide Voltage Input Range: Capable of handling voltage inputs from DC 0V to 25V, our module empowers you to explore a diverse range of testing scenarios with ease.
  • Precision Voltage Detection: Leverage the power of 10-bit AD technology present in Arduino AVR chips. This module offers a remarkable analog resolution of 0.00489V (5V/1023), ensuring that your voltage measurements are incredibly accurate.
  • Adaptability for Various Systems: Seamlessly integrate the module into different systems. For instance, if you’re using a 3.3V system, the input voltage should not exceed 3.3V x 5, ensuring compatibility without compromise.
  • User-Friendly Interface: Connecting the module is a breeze: “+” connects to 5/3.3V, “-” connects to GND, and “s” is linked to Arduino AD pins. The DC input interface boasts a red terminal for positive connection to VCC and negative connection to GND.
  • Enhanced Versatility: The 3P connector establishes a bridge between the module and Arduino expansion boards. Unlock the potential to effortlessly monitor battery voltage and even showcase readings on an IICLCD1602 LCD display.

Elevate your electronic testing experiences with the Voltage Sensor Module – Your ultimate tool for precision and reliability. Don’t miss out on this opportunity to enhance your projects. Order now and experience the future of voltage testing.

Package Includes:

  • 1 x Voltage Detection Module – Your Bridge to Accurate Voltage Measurements for Arduino and Beyond

Additional information

Weight 30 g
Dimensions 260 × 160 × 20 mm
