Description:
OLED (Organic Light-Emitting Diode) is a self light-emitting technology composed of a thin, multi-layered organic film placed between an anode and cathode. In contrast to LCD technology, OLED does not require a backlight. OLED possesses high application potential for virtually all types of displays and is regarded as the ultimate technology for the next generation of flat-panel displays.
OLED (Organic Light-Emitting Diode) is a self light-emitting technology composed of a thin, multi-layered organic film placed between an anode and cathode. In contrast to LCD technology, OLED does not require a backlight. OLED possesses high application potential for virtually all types of displays and is regarded as the ultimate technology for the next generation of flat-panel displays.
Features:
- No need backlight, the display unit can emit light.

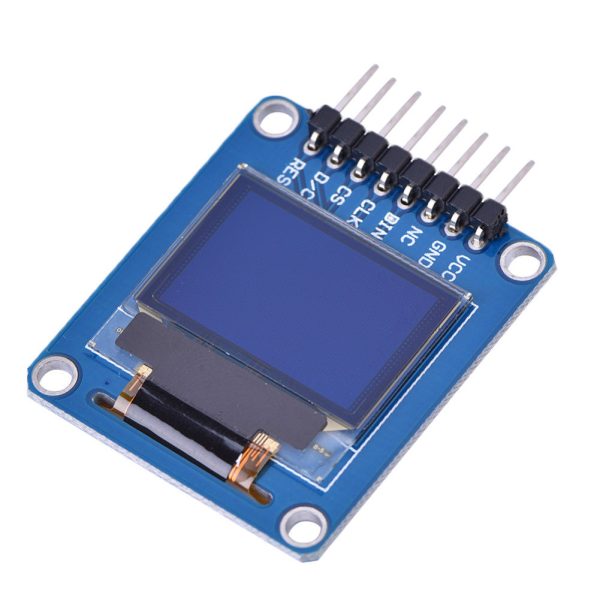

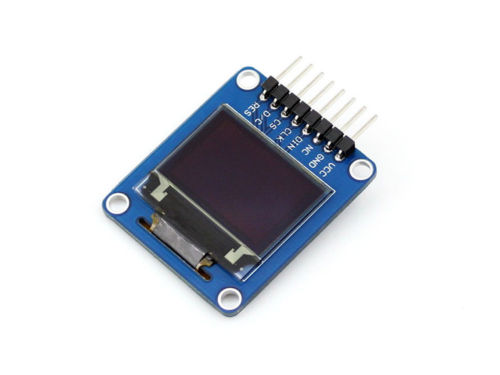

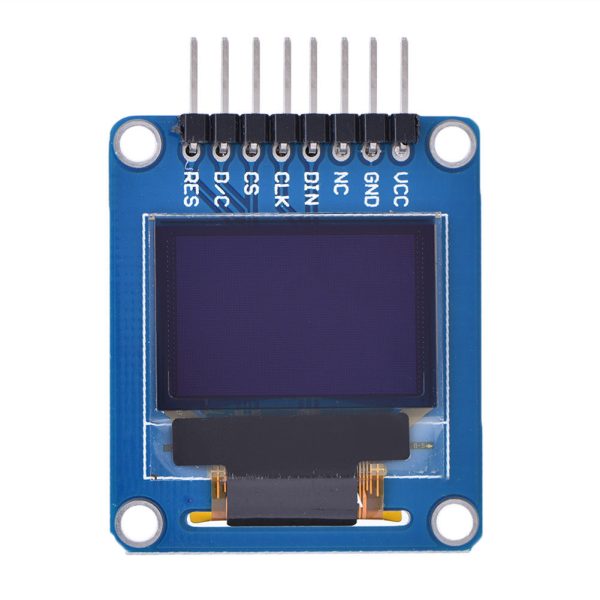

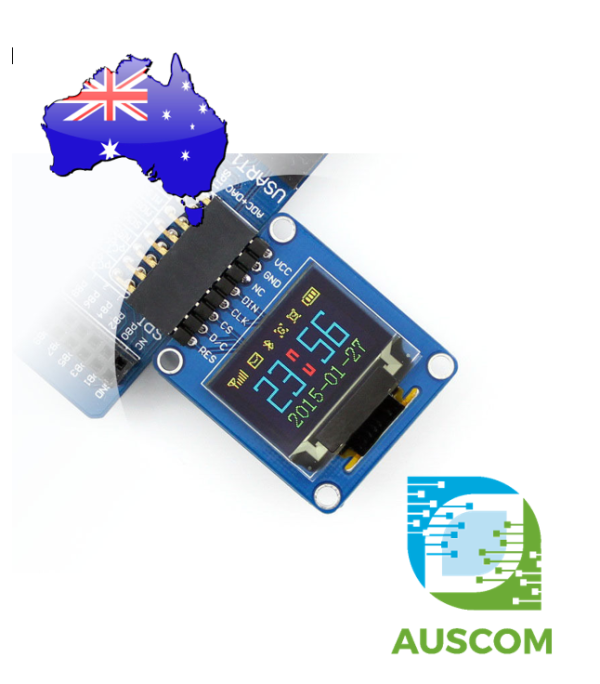

- 0.95inch RGB OLED, SPI interface
- High resolution: 96 * 64
Specifications:
Driver Chip: SSD1331

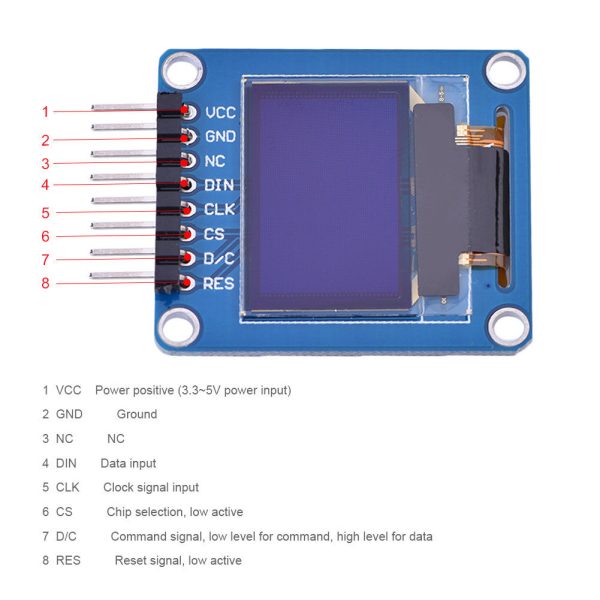

Interface: SPI
Resolution: 96*64
Display Size: 0.95inch
Colors: RGB, 65K
Visible Angle: More than 160 °

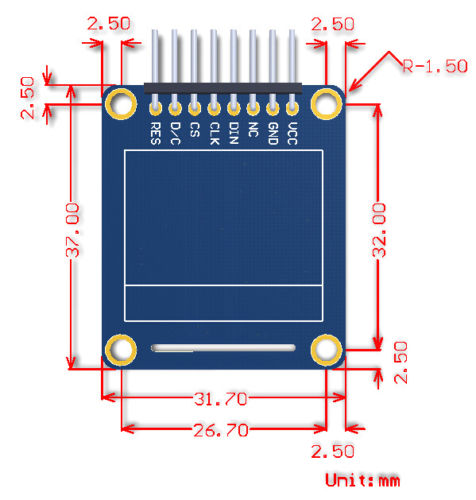

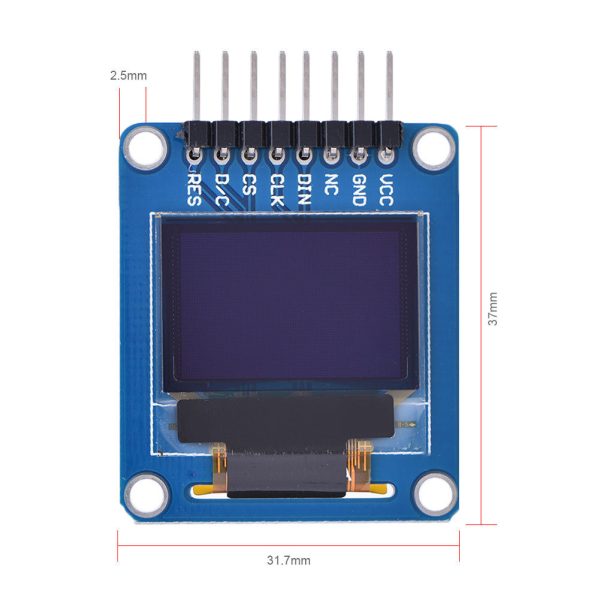

Dimension: 31.7 * 37mm /
Operating Temp.: -20~70 (degree)
Storage Temp.: -30~80 (degree)
Voltage: 3.3V / 5V
Package weight: 10g
Application Scope: Smart watches, MP3 players, thermometers, instrumentation, portable medical instrument, and so on.
Driver Chip: SSD1331
Interface: SPI
Resolution: 96*64
Display Size: 0.95inch
Colors: RGB, 65K
Visible Angle: More than 160 °
Dimension: 31.7 * 37mm /
Operating Temp.: -20~70 (degree)
Storage Temp.: -30~80 (degree)
Voltage: 3.3V / 5V
Package weight: 10g
Application Scope: Smart watches, MP3 players, thermometers, instrumentation, portable medical instrument, and so on.
User Manual Link: http://www.waveshare.com/wiki/0.95inch_RGB_OLED_(A)
Package List:
1 x 0.95inch OLED (A)
1 x 0.95inch OLED (A)
