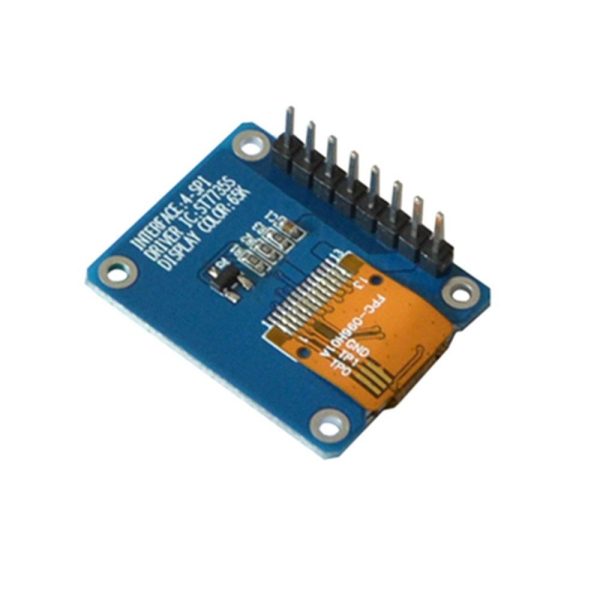

Description
1.Features
| SIZE | 0.96inch |
| Display Mode | Normally black IPS |
| Display Format | Graphic 80RGB*160 Dot-matrix |
| Input Data | SPI interface |
| Drive IC | ST7735S |

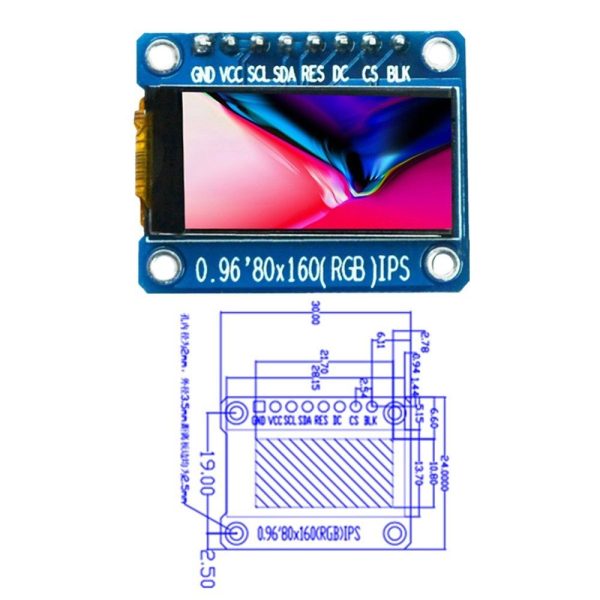

| Dimensional outline | 24(W)*30 (H)*2.8+/-0.1(T)mm |
| Resolution | 80RGB*160 Dots |
| LCD Active area | 10.8 (W)*21.7 (H) |
| Dot pitch | 0.135(H) x 0.1356(V) mm |
| Viewing Direction | All View |
| Operating Temperature | -20～70°C
|
| Weight | 4g |

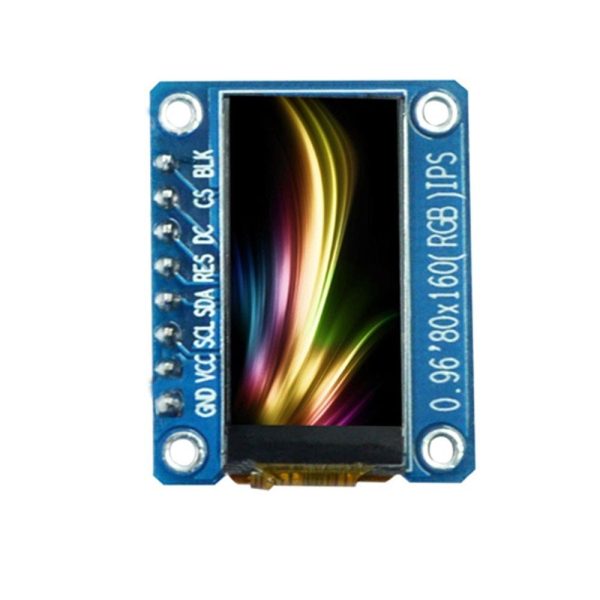

2.Pin Descriptions：
| PIN No | Symbol | Description |
| 1 | GND | Ground |
| 2 | VCC | Power 3.3V |
| 3 | SCL | Serial clock pin. |
| 4 | SDA | Serial data input |
| 5 | RES | LCM Reset pin
This pin is reset signal input. When the pin is low, initialization of the chip is executed. Keep this pin pull high during normal operation. |
| 6 | DC | Data/Command Control |
| 7 | CS | Chip Select |
| 8 | BLK | Backlight control pin |

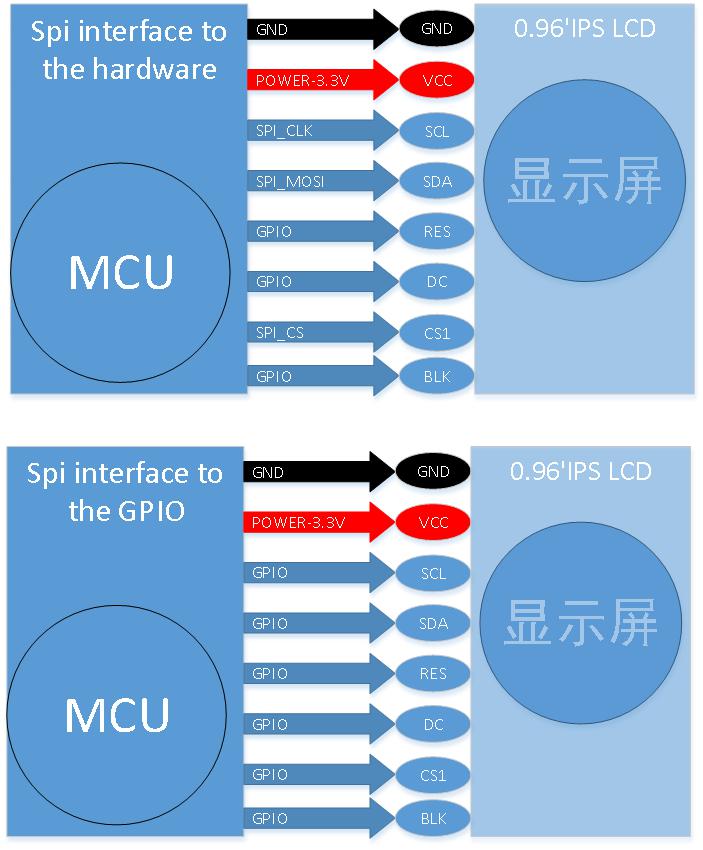

3. Connected to the microcontroller
Package Included:

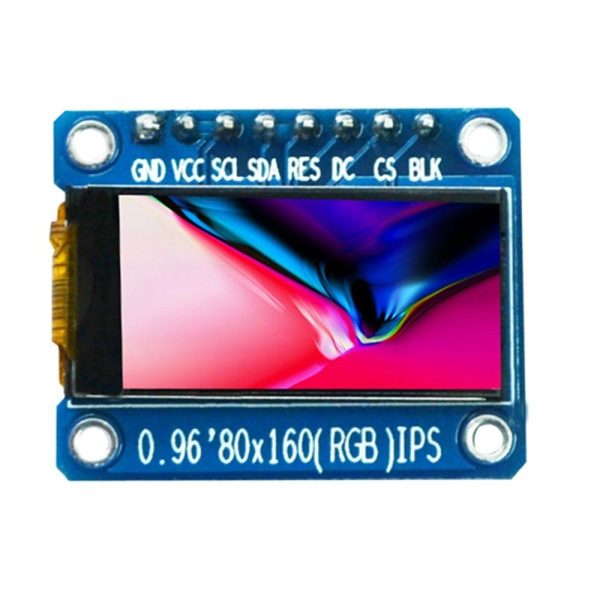

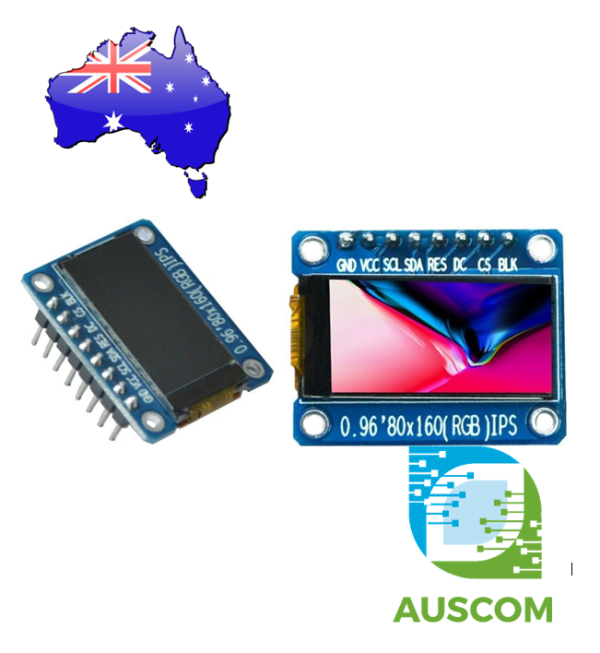

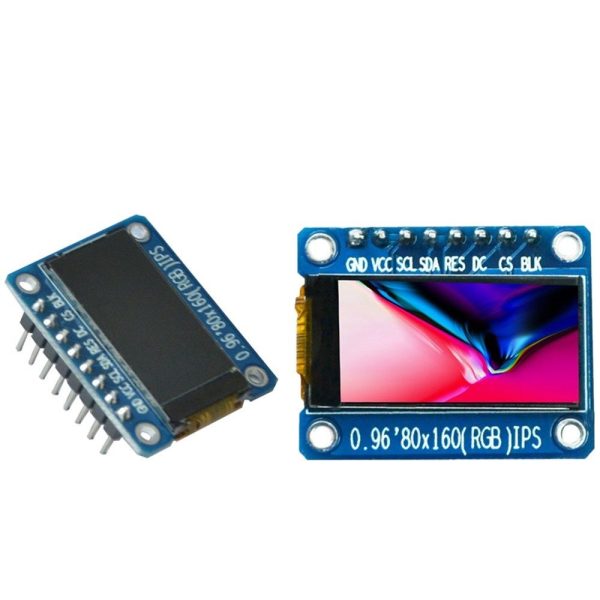

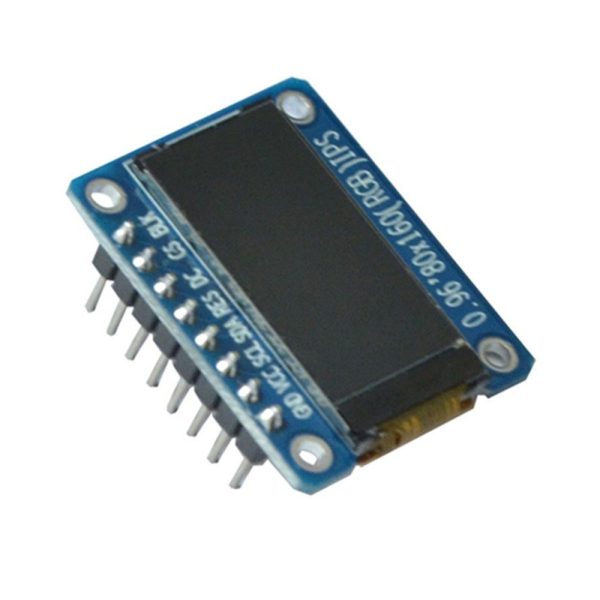

1 x 0.96” Inch IPS Full Color 80×160 LCD
