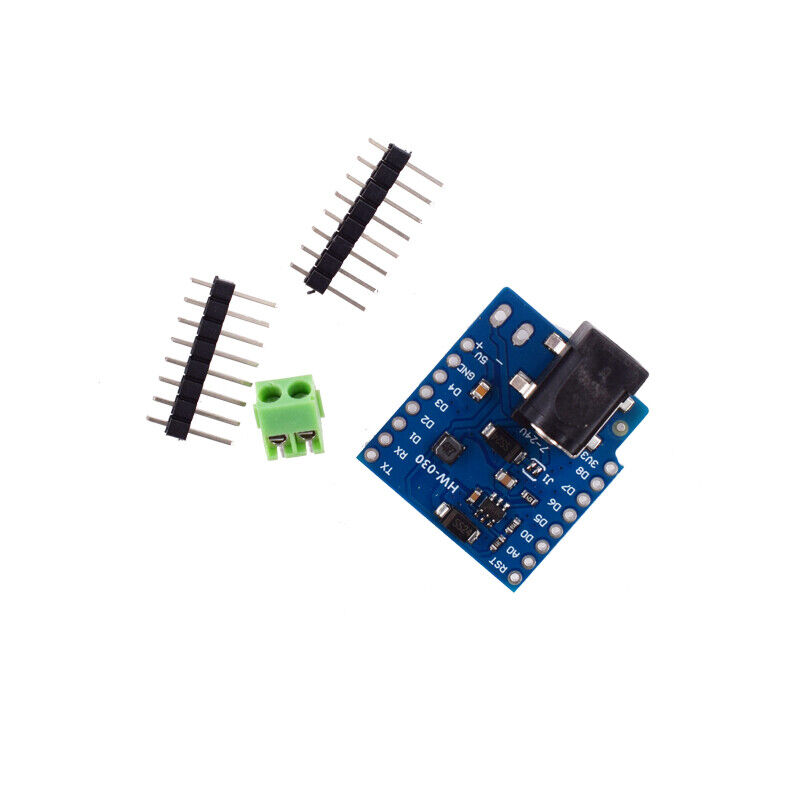

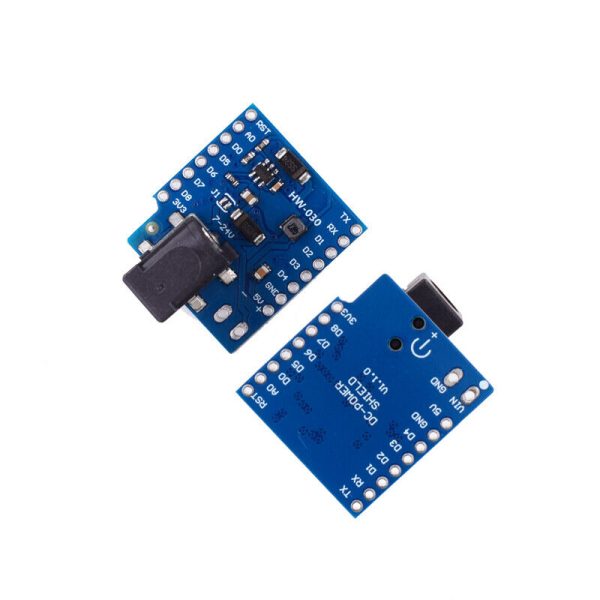

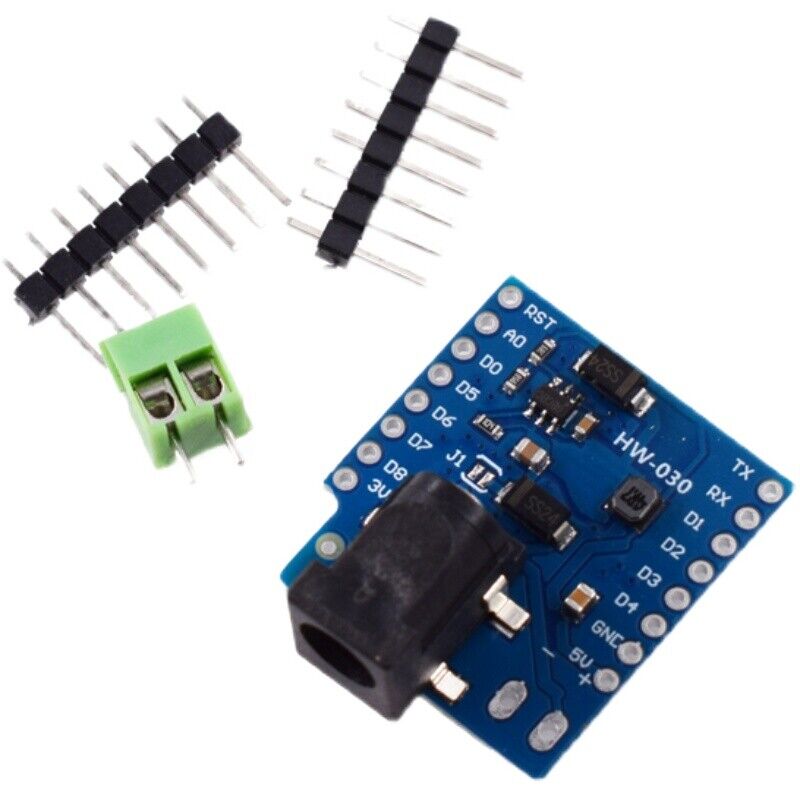

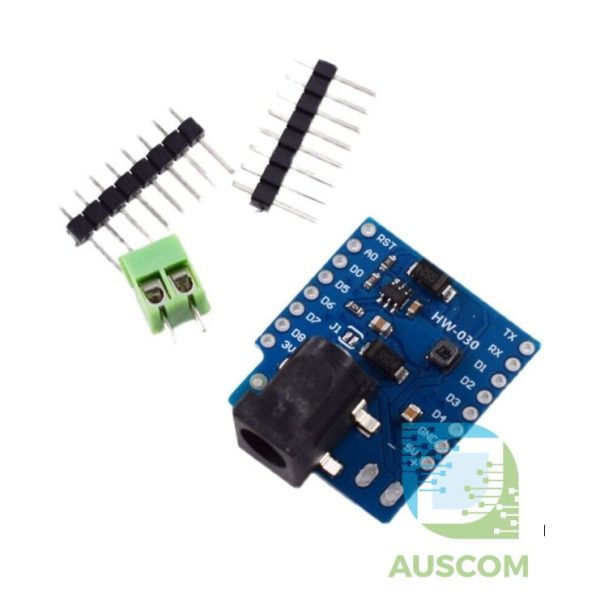

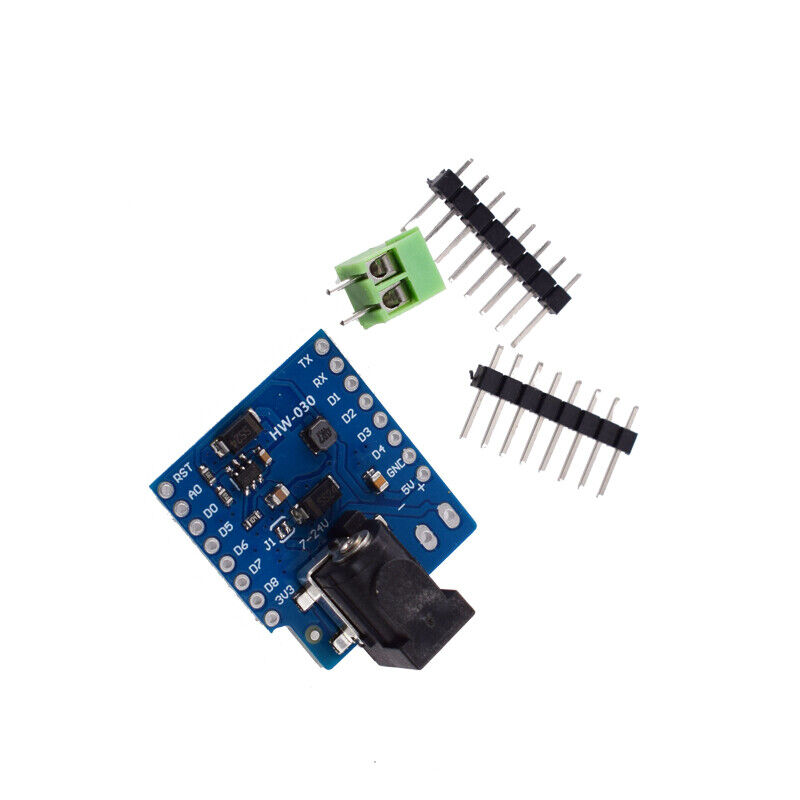

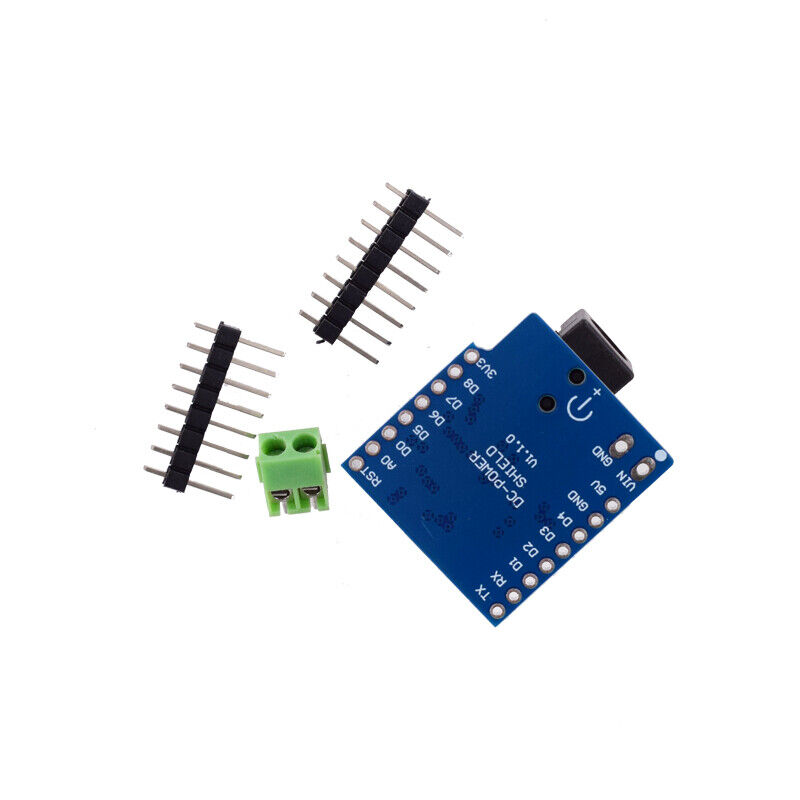

Mini DC Power Shield 7–24V to 5V 1A for Wemos D1 Mini ESP8266

🔋 Mini DC Power Shield 7–24V to 5V 1A for Wemos D1 Mini ESP8266 | AuscomTech

The Mini DC Power Shield is a compact, efficient step-down power module designed to supply a stable 5V output from a wide DC 7–24V input, making it ideal for Wemos D1 Mini, ESP8266, ESP12, and Arduino-based projects.

This shield-style regulator is perfect for powering microcontrollers and peripherals from higher-voltage sources such as wall adapters, batteries, or solar systems, while maintaining reliable and consistent 5V power delivery.

⭐ Key Features

⚡ Wide DC Input Range
Accepts input voltages from 7V to 24V DC, suitable for adapters, batteries, and solar sources.

🔌 Stable 5V Regulated Output
Provides a clean, regulated 5V output to protect sensitive electronics from voltage fluctuation.

🔋 Up to 1A Output Current
Delivers sufficient current for microcontrollers, sensors, and low-power peripherals.

🧩 Designed for Wemos D1 Mini Form Factor
Shield layout allows direct integration with Wemos D1 Mini and ESP8266-based boards.

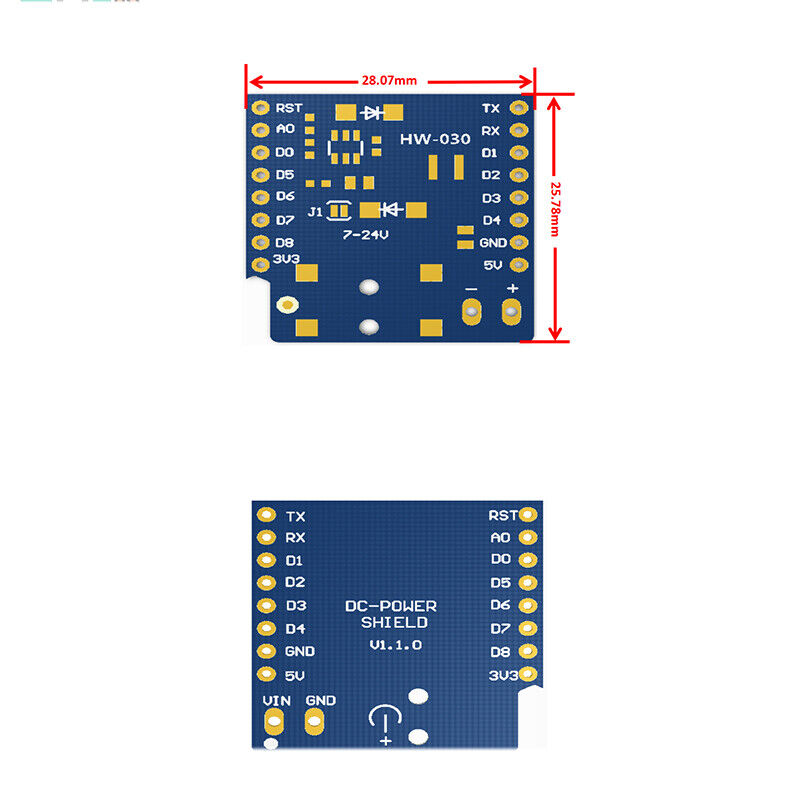

📐 Compact & Lightweight Design
Small footprint ideal for embedded systems and space-constrained projects.

🛠️ Simple Integration
No complex wiring required—drop-in power solution for compatible boards.

📊 Technical Specifications

Input Voltage: DC 7–24V
Output Voltage: 5V DC
Maximum Output Current: 1A
Regulation Type: Step-down (buck)
Board Compatibility: Wemos D1 Mini, ESP8266, ESP12, Arduino (5V systems)
Mounting Type: Shield-style / module

⚠️ Important Notes

• Ensure input voltage does not exceed 24V
• Output current limited to 1A — check total load requirements
• Designed for 5V systems only
• Adequate ventilation recommended under sustained load

🧩 Compatible With

• Wemos D1 Mini (ESP8266)
• ESP8266 / ESP12 modules
• Arduino 5V boards
• IoT and automation projects
• Sensors, relays, and low-power peripherals

⚙️ Typical Applications

• IoT and smart home devices
• ESP8266-powered projects
• Arduino systems with higher-voltage power sources
• Battery-powered electronics
• Solar-powered embedded systems
• Prototyping and development

📦 Package Includes

• 1 × Mini DC Power Shield (7–24V to 5V, 1A)
