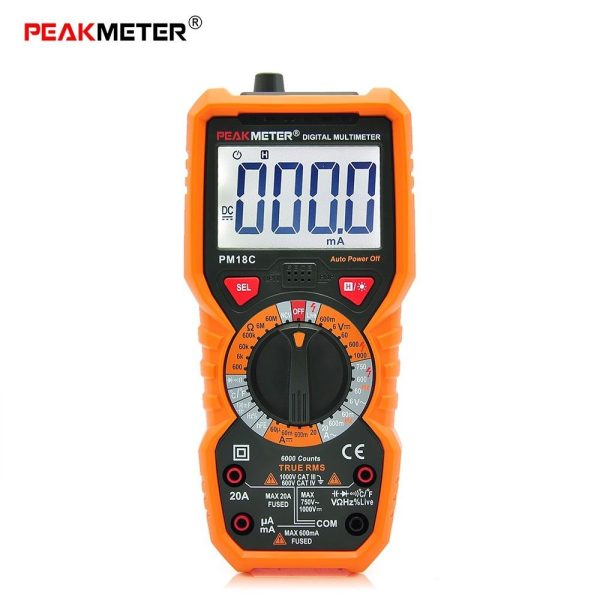

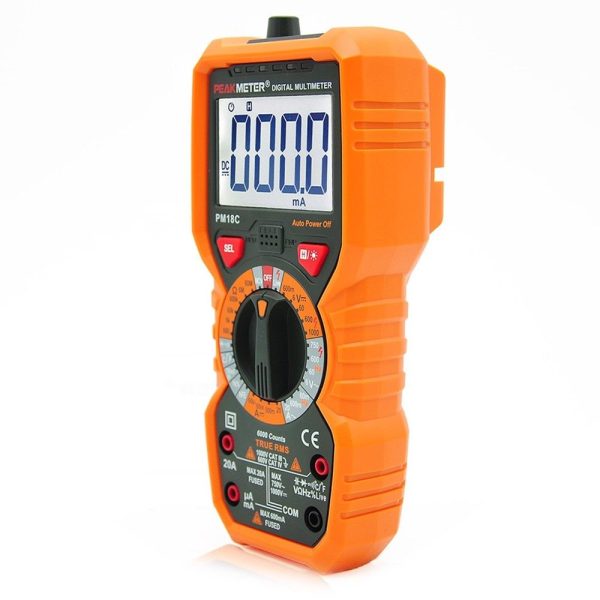

PEAKMETER PM18C Digital Multimeter AC / DC Voltage Current Temperature True RMS

$79.50

7 in stock

SKU: PM18C Category:

Description

Overview:

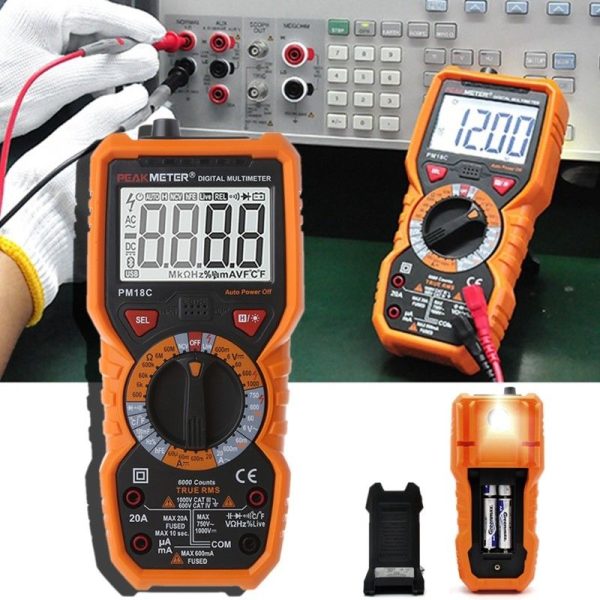

This digital multimeter is a portable handheld professional meter to measure AC / DC voltage, AC / DC current, resistance, capacitance, temperature, frequency, and duty cycle. With large LCD digital display screen with backlight, easily read.

Features:
– Overload protection and battery voltage indication
– Ideal for professions, factories, schools, amateur and home use

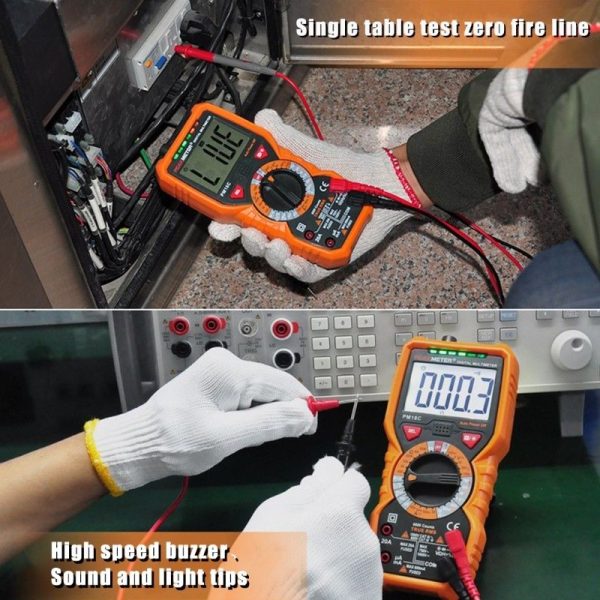

– Manual range, data hold, non-contact detector, diode test, transistor and continuity

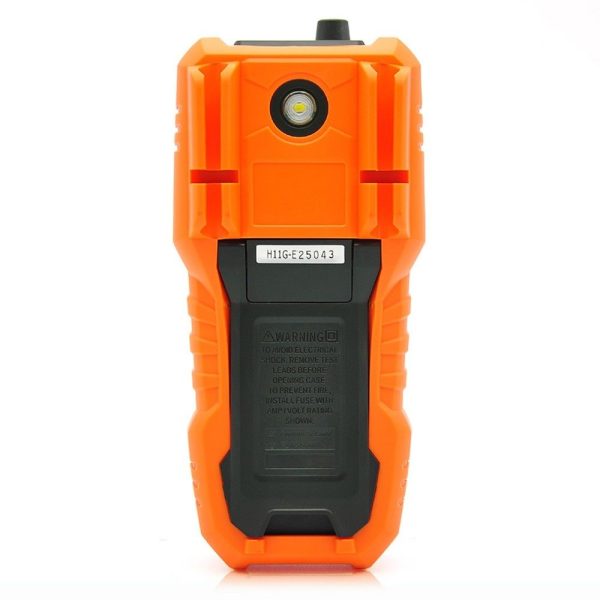

– Inbuilt flashlight, convenient lighting tool

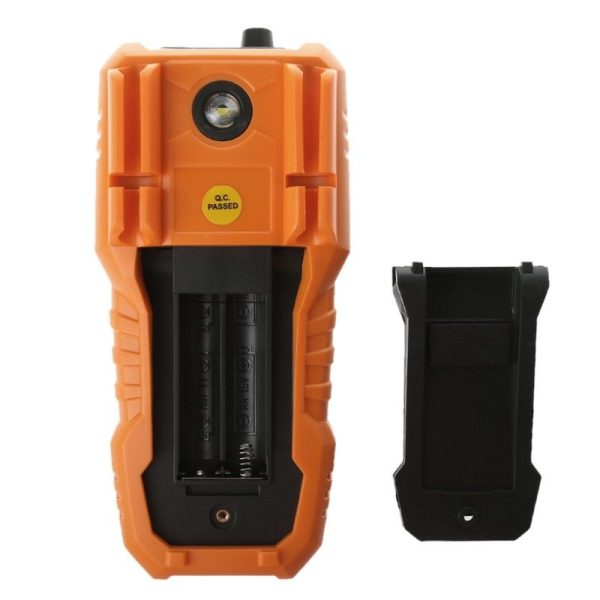

– Powered by 4 x 1.5V AA batteries ( not included )

Specifications:
DC voltage measurement: 600mV / 6V / 60V / 600V / 1000V + / – ( 0.5pct + 2 )
AC voltage measurement: 6V / 60V / 600V + / – ( 0.8pct + 3 )
750V + / – ( 1.2pct + 3 )
DC current measurement: 60uA / 60mA / 600mA + / – ( 0.8pct + 3 )
20A + / – ( 1.2pct + 3 )
AC current measurement: 60mA / 600mA + / – ( 1.0pct + 3 )
20A + / – ( 1.5pct + 3 )
Resistance measurement: 600 ohm / 6 kohm / 60 kohm / 600 kohm / 6M ohm + / – ( 0.8pct + 3 )
60M ohm + / – ( 1.2pct + 3 )
Capacitance measurement: 6nF / 60nF / 600nF / 6uF / 60uF / 600uF / 6000uF + / – ( 4.0pct + 3 )
100mF + / – ( 5.0pct + 3 )
Temperature measurement: -20 Deg.C – 1000 Deg.C + / – ( 1.0pct + 3 )
-4 Deg.F -1832 Deg.F + / – ( 1.0pct + 3 )
Frequency measurement: 10Hz – 10MHz + / – ( 1.0pct + 3 )
Duty cycle measurements: 1pct – 99pct + / – ( 2.0pct + 2 )
Safety rating: CE CAT. III 1000V CAT.IV 600V RoHS



Specifications
Dimensions and Weight
Product weight 0.3800 kg
Package weight 0.5700 kg
Product Size(L x W x H) 19.00 x 8.90 x 5.00 cm / 7.48 x 3.5 x 1.97 inches
Package Size(L x W x H) 21.00 x 12.60 x 6.00 cm / 8.27 x 4.96 x 2.36 inches
Package Contents

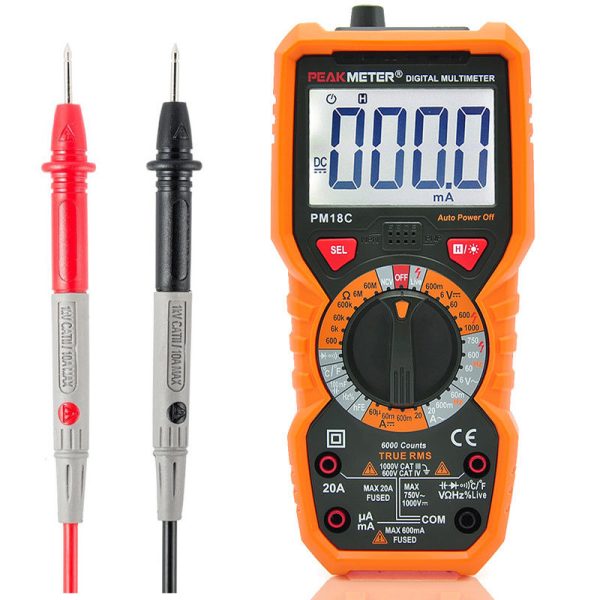

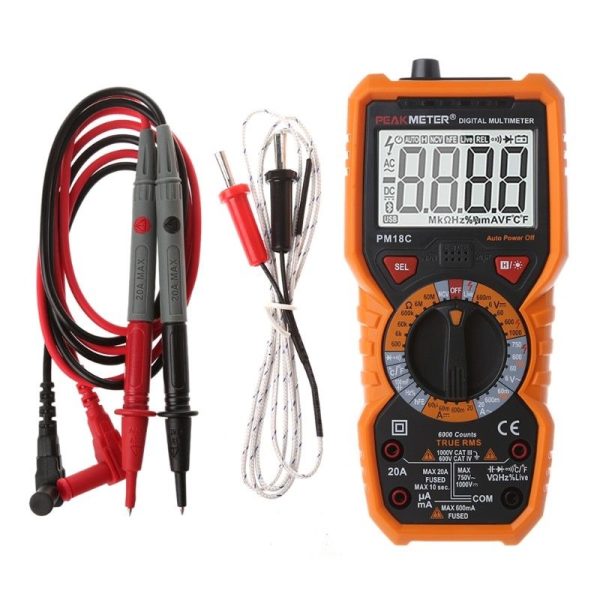

Package Contents 1 x Digital Multimeter, 1 x Pair of Test Probes, 1 x English User Manual

Additional information

Weight 500 g
Dimensions 200 × 150 × 80 mm
