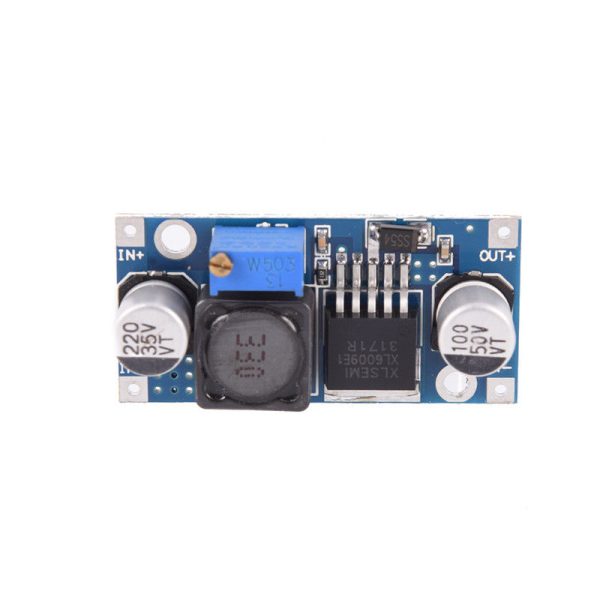

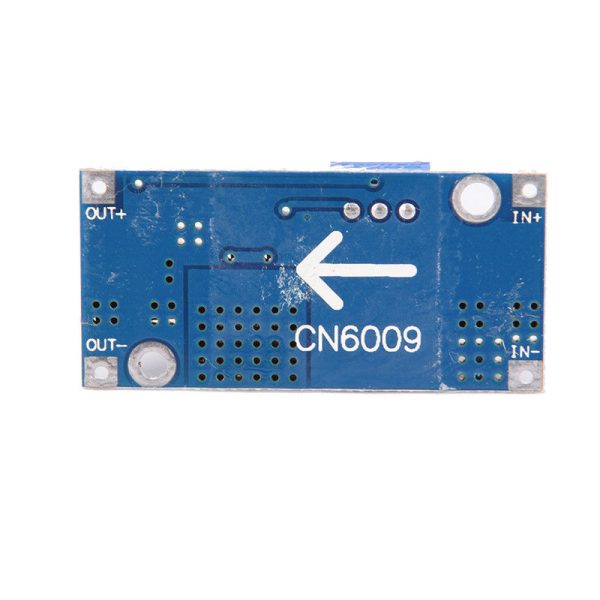

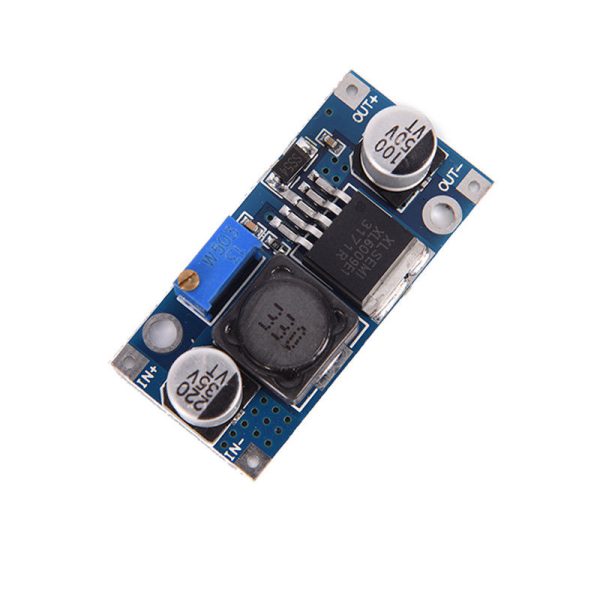

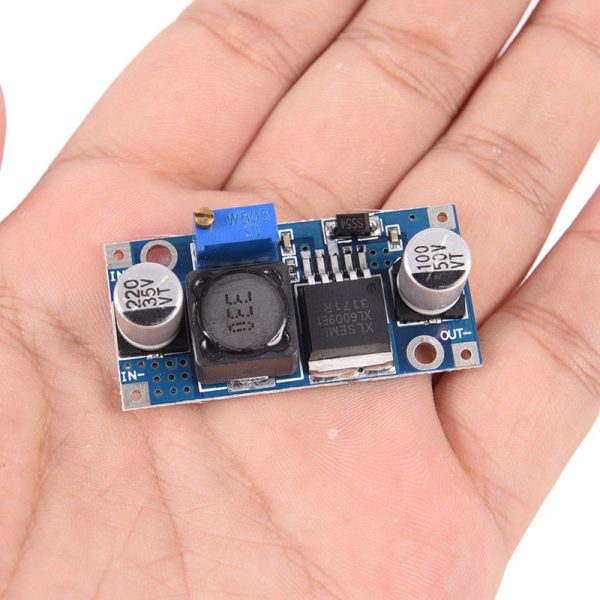

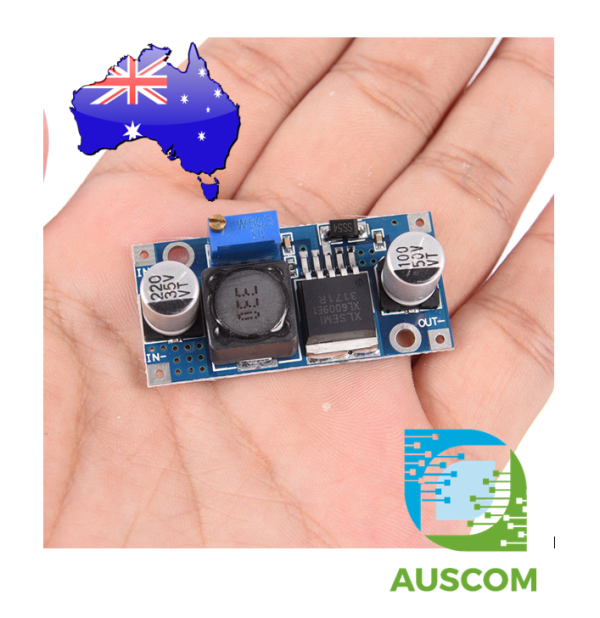

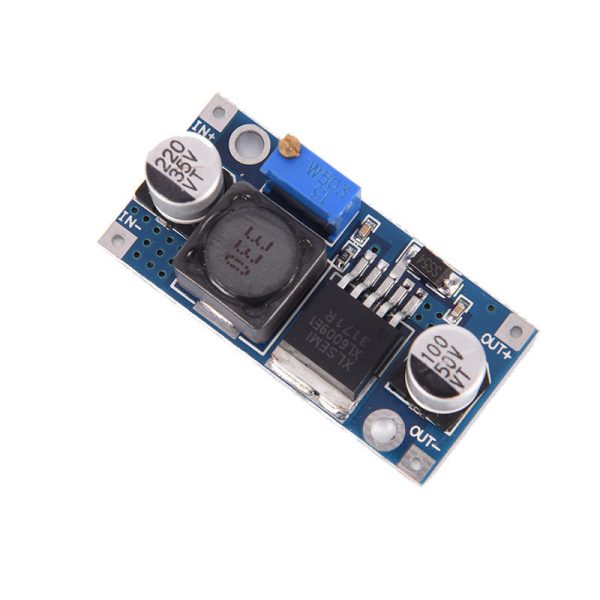

XL6009 DC-DC Adjustable Step-up Boost Power Converter Module 4Amp Output

$6.80 Inc. GST

Availability: 52 in stock SKU: 8-3-1-1 Category:
Quantity Discount (%) Price
1 $6.80
2 - 4 5 % $6.46
5 - 9 7.5 % $6.29
10 - 19 10 % $6.12
20 - 49 12.5 % $5.95
50 - 99 15 % $5.78
100+ 17.5 % $5.61
Compare Compare

Description

Introducing the XL6009 DC-DC Adjustable Step-up Boost Power Converter Module – Delivering 4Amps of Dynamic Output

Features:

  • Unique IN-IN + Input Configuration: Positive Input, Negative Output
  • Efficient Power Flow: Positive Output (OUT+) and Negative Output (OUT-)

Sample Test Comparisons:

  • Transformative Performance: Input 3V yields Output 12V at 0.4A (4.8W)
  • Enhanced Efficiency: Input 5V delivers Output 12V at 0.8A (9.6W)
  • Power Unleashed: Input 7.4V results in Output 12V at 1.5A (18W)
  • Versatile Potential: Input 12V provides Output 15V at 2A (30W)
  • Elevated Power: Input 12V generates Output 16V at 2A (32W)
  • Optimal Performance: Input 12V yields Output 18V at 1.6A (28.8W)
  • Precision Output: Input 12V produces Output 19V at 1.5A (28.5W)
  • Efficient Boost: Input 12V transforms into Output 24V at 1A (24W)

Vin * Iin * Efficiency = Vout * Iout

Where: Vin: Input Voltage Iin: Input Current Vout: Output Voltage Iout: Output Current

Unveiling the DSN6009 4A High-Performance Step-Up Switching Current (BOOST) Module:

Engineered for Excellence: The DSN6009 harnesses the prowess of second-generation high-frequency switching technology with the XL6009E1 core chip, outshining the previous LM2577 first-generation technology. Enjoy superior performance at a lower cost, effectively outpacing the LM2577 module that’s nearing obsolescence.

Features at a Glance:

  • Broad Input Voltage Range: 3V to 32V, with an Optimal Range of 5V to 32V
  • Expansive Output Voltage Span: 5V to 35V
  • Empowered Efficiency: 4A Efficient MOSFET Switches Achieve Up to 94% Efficiency (LM2577: 3A)
  • High-Frequency Elegance: 400KHz Switching Frequency Enables Use of Compact Filter Capacitors, Resulting in Reduced Ripple (LM2577: 50KHz)

Technical Specifications:

  • Model: DSN6009 Boost Module
  • Module Type: Non-isolated Boost (BOOST)
  • Rectification: Non-Synchronous Rectification
  • Input Range: 3V to 32V
  • Output Range: 5V to 35V
  • Input Current: Max 4A, No-Load 18mA (5V Input, 8V Output, No-Load < 18mA. Increased Voltage Yields Greater Load Current)
  • Conversion Efficiency: <94% (Efficiency Decreases with Higher Pressure)
  • Switching Frequency: 400KHz
  • Output Ripple: 50mV (Ripple Increases with Higher Voltage and Current)
  • Load Regulation: ±0.5%
  • Voltage Regulation: ±0.5%
  • Operating Temperature: -40°C to +85°C
  • Dimensions: 43mm * 21mm * 14mm (Length * Width * Height)

Included in Package:

  • 1 x DC-DC Adjustable Step-up Power Converter Module XL6009

Upgrade your power transformation game with the XL6009 DC-DC Adjustable Step-up Boost Power Converter Module. Elevate your projects with its unmatched efficiency and performance. Buy yours now and experience the future of power conversion.

Additional information

Weight 30 g
Dimensions 260 × 160 × 20 mm
