MT3608 DC-DC Step Up Booster Module 2A Adjustable 2V-24V to 5V-28V

🔧 MT3608 DC-DC Step Up Booster Module | AuscomTech

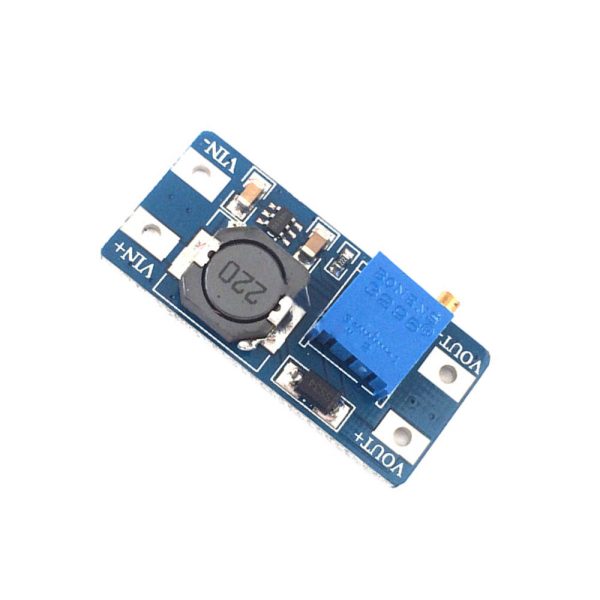

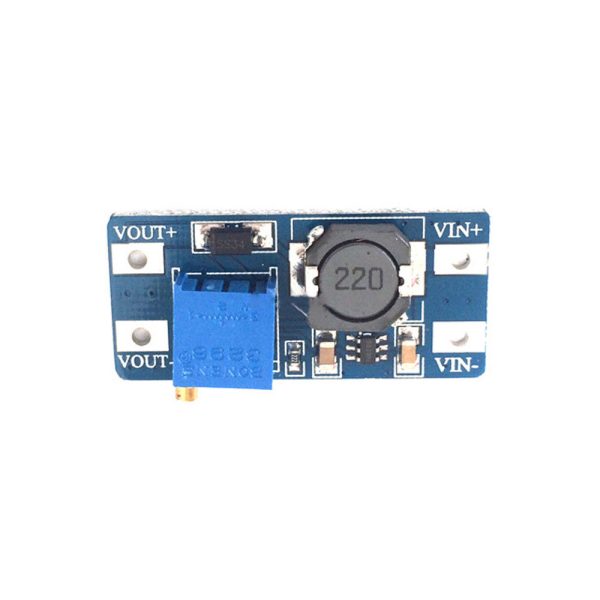

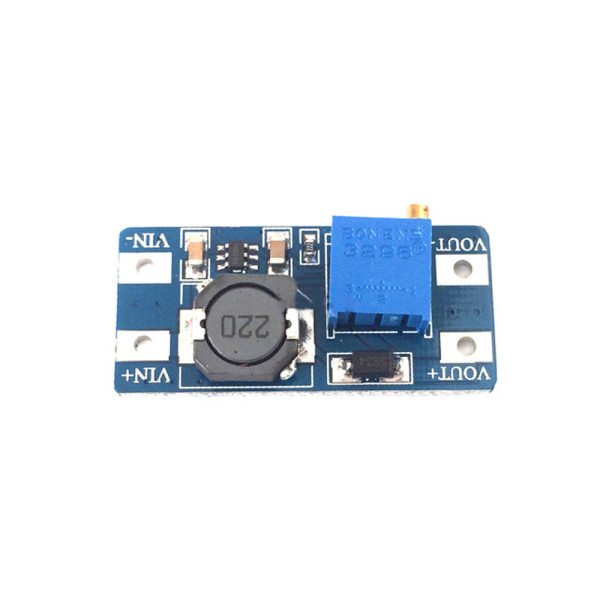

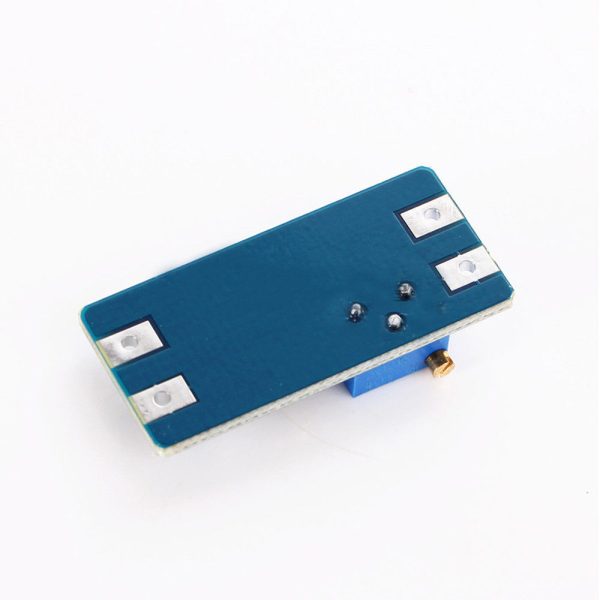

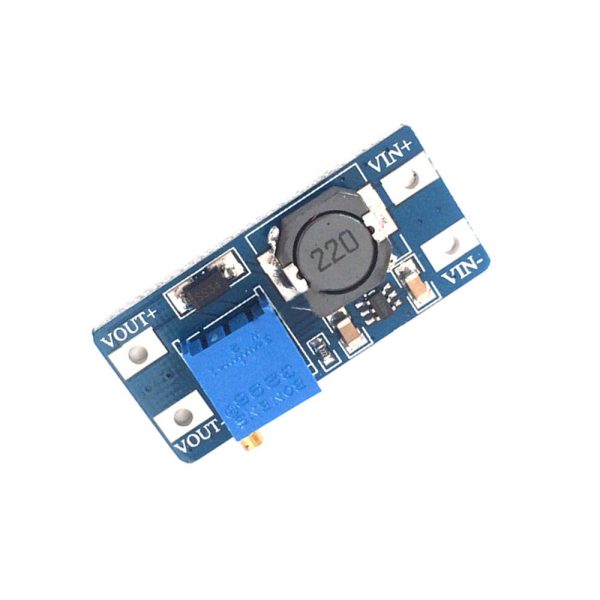

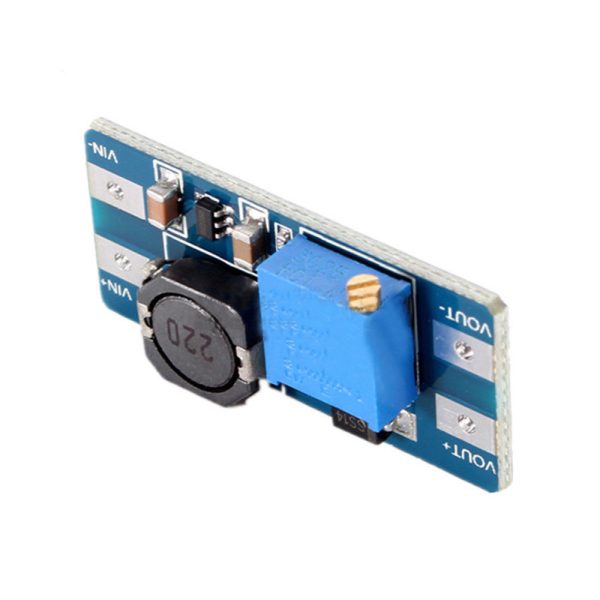

The MT3608 is a compact adjustable DC-DC step up power module designed to increase a lower DC input voltage to a higher adjustable output voltage.

Using the onboard MT3608 switching regulator and multi-turn potentiometer, it can convert a 2V-24V input to an adjustable 5V-28V output with high efficiency and low ripple.

It is commonly used for Arduino, ESP32, battery-powered projects, portable electronics, LED drivers, and DIY power supply applications where a higher output voltage is required.

⭐ Key Features

• Adjustable boost output – output voltage can be set using the onboard trim potentiometer.
• Wide input range – accepts DC input from 2V to 24V.
• Higher output range – adjustable output from 5V to 28V.
• 2A maximum output – suitable for many embedded and low-power DC boost applications.
• High efficiency design – conversion efficiency up to 96% under suitable conditions.
• Low ripple – output ripple specified at less than 100mV.
• Compact module – small PCB size makes it easy to integrate into projects and enclosures.
• Microcontroller friendly – useful for Arduino, ESP32, sensors, displays, and portable power builds.

📊 Technical Specifications

• Model: MT3608 adjustable step-up module
• Converter Type: DC-DC boost converter
• Input Voltage: 2V-24V DC
• Output Voltage: 5V-28V DC adjustable
• Maximum Output Current: 2A max
• Conversion Efficiency: up to 96%
• Switching Frequency: 1.2MHz
• Output Ripple: <100mV
• Load Regulation: ±0.5%
• Voltage Regulation: ±0.5%
• Working Temperature: -45°C to +85°C
• Size: 37.2mm × 17.2mm × 14.0mm
• Weight: 5g

🧩 Typical Applications

• Arduino and ESP32 projects
• Battery voltage boosting
• Portable electronics power conversion
• LED power supply projects
• DIY regulated power modules
• Sensor and display power upgrade
• USB and embedded electronics experiments

⚠️ Important Notes

• This is a step-up module only – output voltage must be set higher than the input voltage.
• Input and output polarity must be connected correctly before power is applied.
• The adjustment potentiometer is multi-turn and may require many turns before output voltage changes noticeably.
• Maximum 2A rating depends on input voltage, output voltage, load, and cooling conditions.
• This module does not provide isolation between input and output.

📦 Package Includes

• 1 × MT3608 DC-DC Step Up Booster Module

🔗 Recommended Accessories (Not Included)

• DC power supply – for bench testing and stable input power
• Hook-up wire set – for input and output connections
• Digital multimeter – for adjusting and verifying output voltage
• Arduino or ESP32 board – for embedded power and control projects
