Arduino UNO R3 Screw Terminal Adapter Module Board Proto Shield V1.0 Expansion

🔧 UNO R3 Screw Terminal Proto Shield V1.0 | AuscomTech

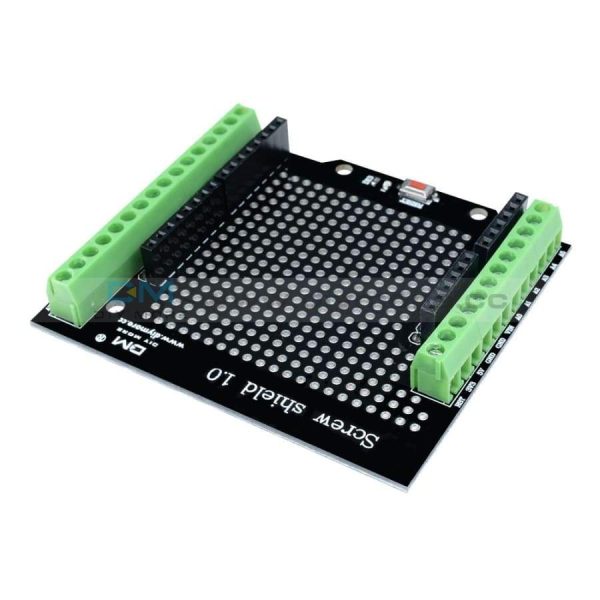

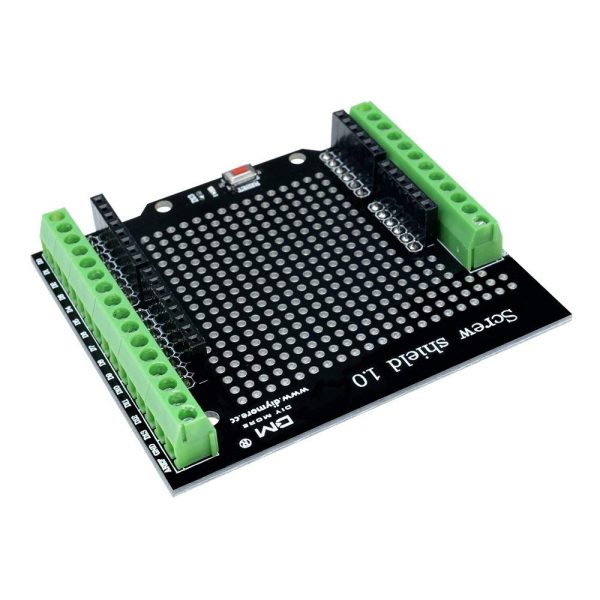

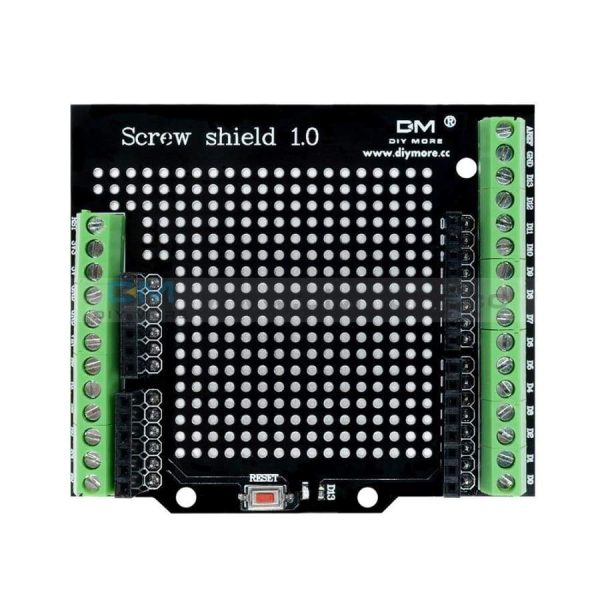

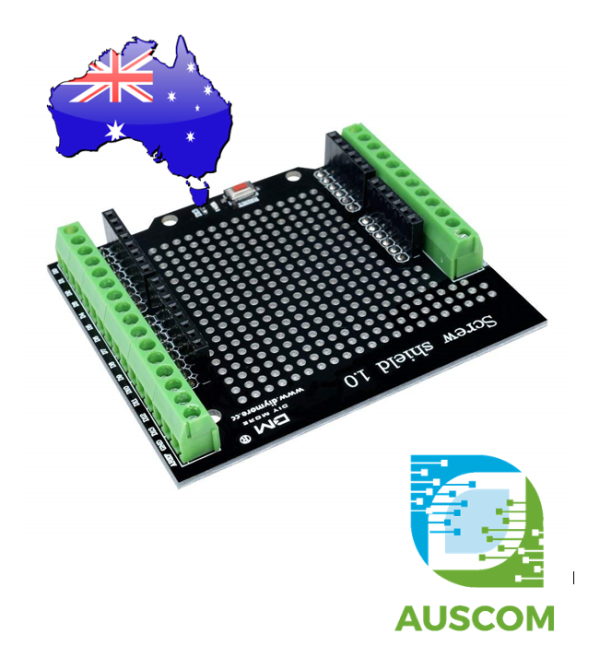

This assembled shield converts Arduino UNO R3 power, analog and digital connections into convenient screw-terminal connection points while providing a central prototyping area.

External sensors, switches, relays and control wiring can be securely connected using the onboard 3.81 mm terminal blocks, reducing reliance on loose jumper leads. Additional solder pads and through-holes allow custom interface components or wiring to be incorporated directly onto the board.

Ideal for fixed prototypes, control panels, automation projects and development setups where secure field wiring and custom circuitry are required on the same shield.

⭐ Key Features

• Screw-Terminal I/O Access – provides secure connections for power, analog and digital pins.
• 3.81 mm Terminal Pitch – suitable for convenient removable wire connections during development and installation.
• Integrated Prototype Area – central through-hole section allows components, headers and interface circuits to be soldered directly onto the PCB.
• Double-Sided Soldering Area – component connections can be developed from either side of the prototyping section.
• Additional Connection Pads – rear I/O solder pads provide convenient points for flying leads and custom wiring.
• Reset Button – retains convenient access to the host board reset function when installed.
• D13 Indicator LED – onboard indicator provides visual monitoring of the corresponding D13 signal.
• Small Breadboard Support – centre section can accommodate a compact solderless breadboard for experimental circuits.

📊 Technical Specifications

• Version: Screw Shield 1.0
• Board Type: Terminal breakout and prototype expansion shield
• Host Compatibility: Arduino UNO R3-style header layout
• Terminal Pitch: 3.81 mm
• Connections: Power, analog I/O and digital I/O breakout
• Prototype Section: Double-sided through-hole soldering area
• Board Width: approx. 74.0 mm
• Overall Height: approx. 62.0 mm
• Main PCB Height: approx. 59.7 mm
• Weight: approx. 32.3 g
• Assembly: Fully assembled

🧩 Typical Applications

• Sensor and switch connections
• Automation and control projects
• Relay and actuator interfacing
• Fixed prototype wiring
• Control panel development
• Educational electronics projects
• Custom interface circuit construction

⚠️ Important Notes

• Designed for boards using the UNO R3 shield header arrangement; check header compatibility before purchase.
• The terminals provide convenient electrical connection points and do not increase the voltage or current capability of the host microcontroller.
• Observe the electrical limits of the connected development board and external devices.
• Arduino board, breadboard, wiring and external components are not included.
• Dimensions and weight are approximate.

📦 Package Includes

• 1 × Screw Shield V1.0 assembled terminal prototype expansion board

🔗 Recommended Accessories (Not Included)

• Arduino UNO R3 – compatible host development board
• Mini solderless breadboard – temporary circuit development in the centre area
• Hook-up wire – connection to sensors, switches and external equipment
• 2.54 mm pin headers – adding custom connection points to the prototype section
