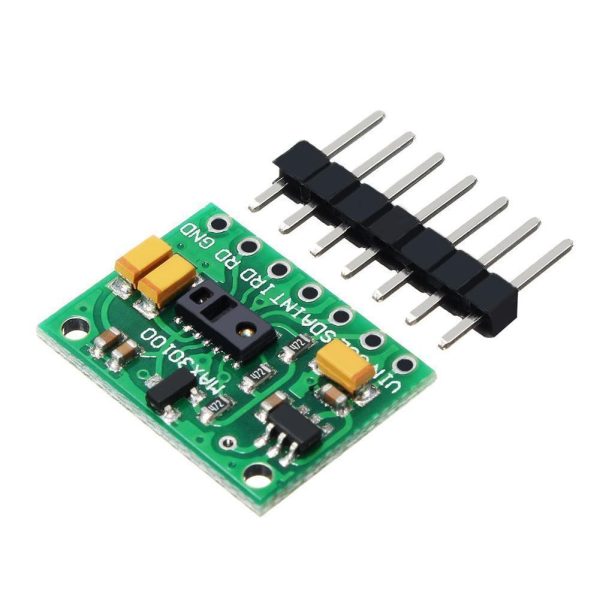

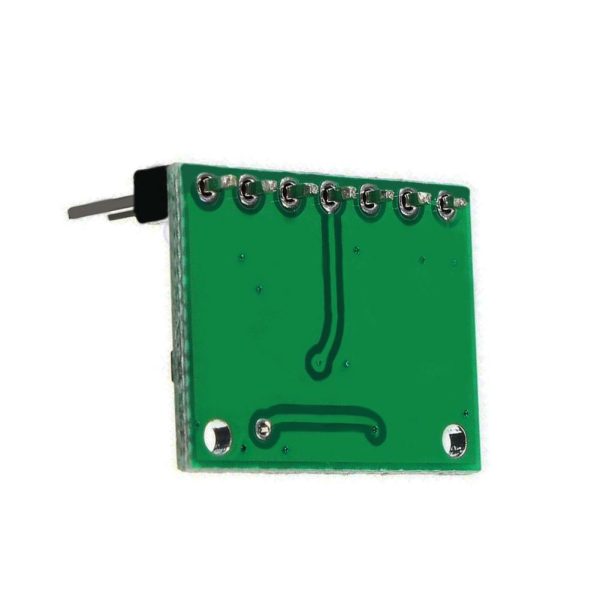

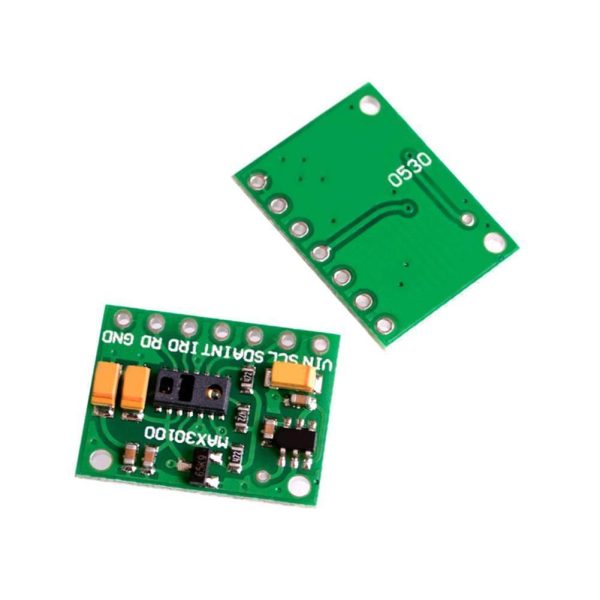

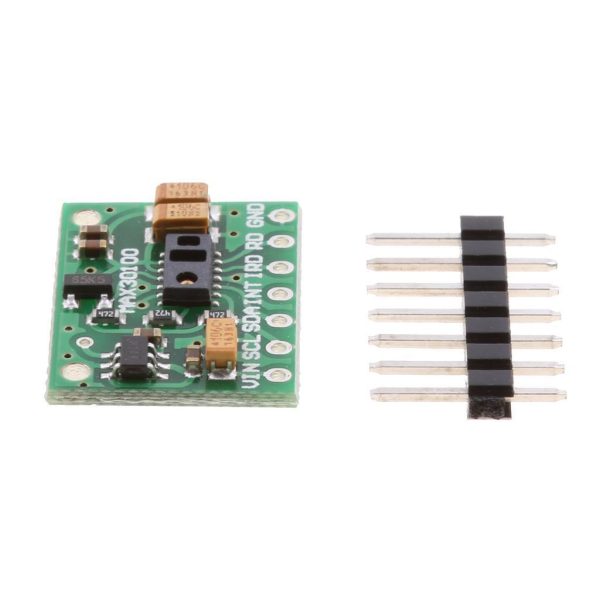

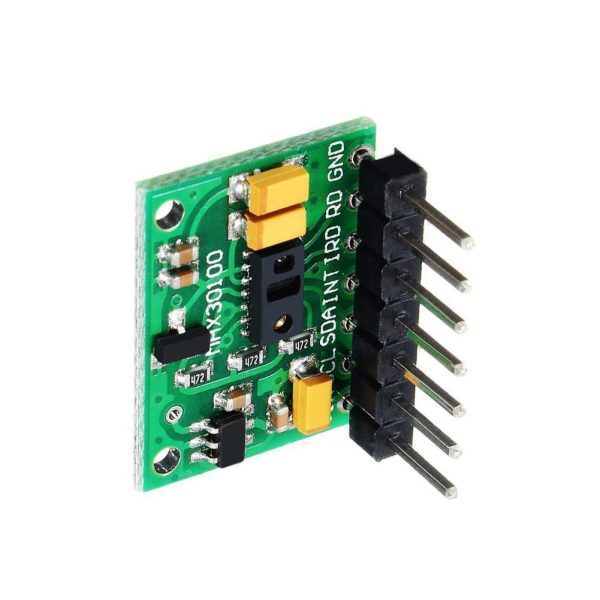

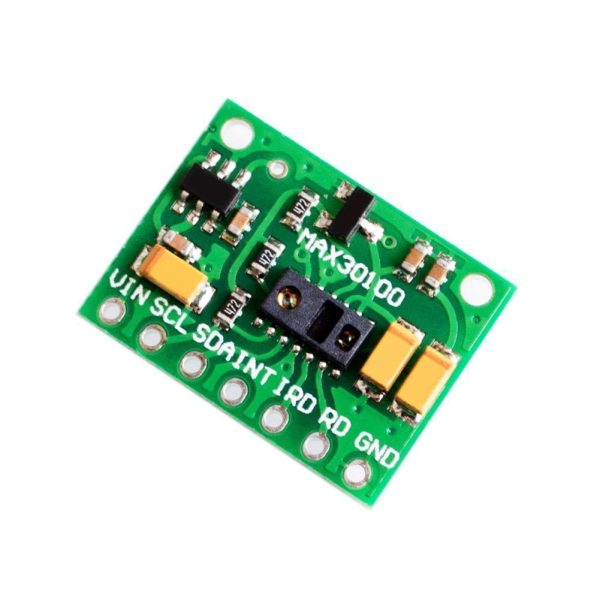

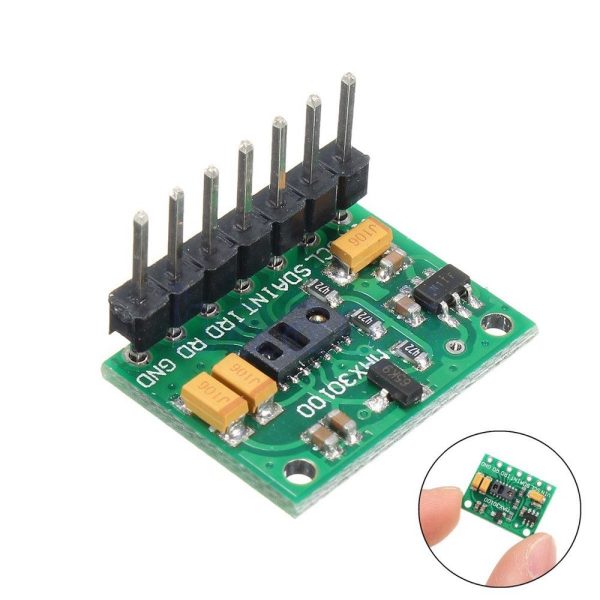

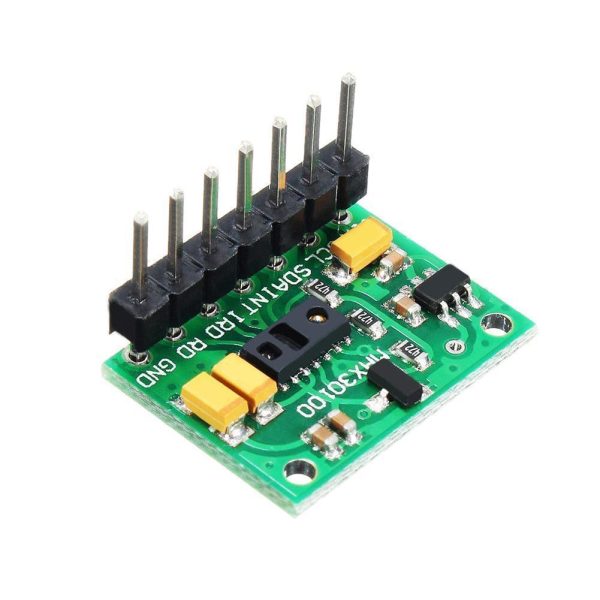

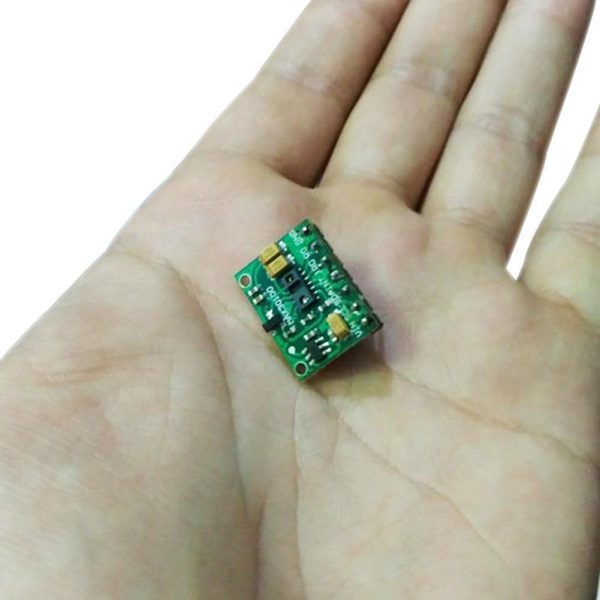

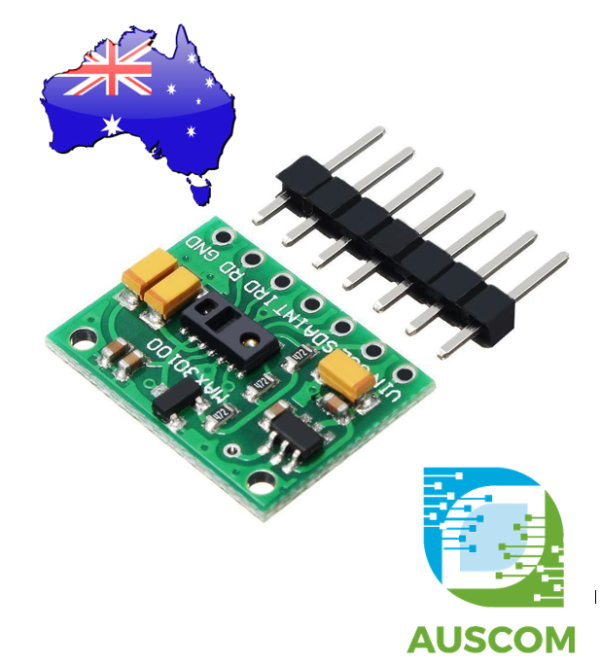

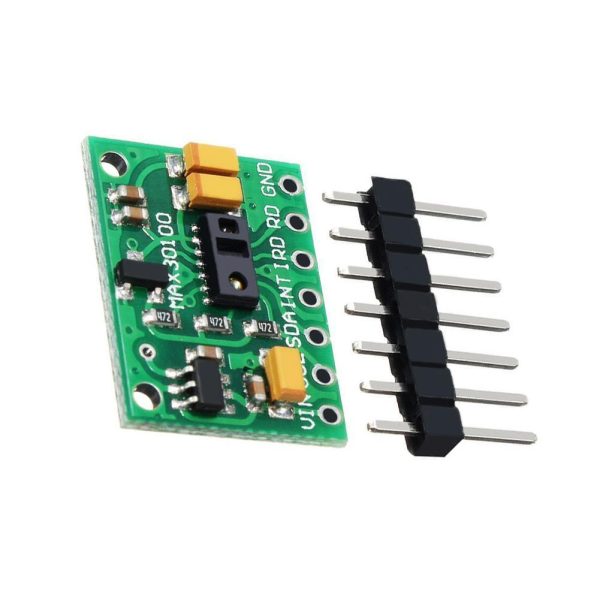

MAX30100 Heart Rate Pulse Oximeters Development Board Sensor For Arduino


2 in stock

SKU: MAX30100MOD Category:


Heart Rate click carries Maxim’s MAX30100 integrated pulse oximetry and heart-rate sensor. It’s an optical sensor that derives its readings
from emitting two wavelengths of light from two LEDs – a red and an infrared one – then measuring the absorbance of pulsing blood through a
photodetector. This particular LED color combination is optimized for reading the data through the tip of one’s finger. The signal is
processed by a low-noise analog signal processing unit and communicated to the target MCU through the mikroBUS I2C interface. Developers of
end-user applications should note that the readings can be negatively impacted by excess motion and changes in temperature. Also, too much
pressure can constrict capillary blood flow and therefore diminish the reliability of the data. A programmable INT pin is also available. Uses
3.3V power supply.
Key features:
Optical sensor: IR and red LED combined with a photodetector
Measures absorbance of pulsing blood
I2C interface plus INT pin
3.3V power supply
Key Benefits:
Motion artifact resilience
Ambient light cancellation
Ready-to-use examples save development time
Supported in all MikroElektronika compilers
Developing algorithms for pulse oximetry and heart rate readings through the tip of a finger.

Package included:
1 x Heart Rate Click MAX30100 modules Sensor for Arduino

Additional information

Weight 20 g
Dimensions 50 × 40 × 20 mm
