Advantages:
High accuracy measuring: Accuracy: ±1%, linearity: 0.5%, repeatability: 0.2%
Wide measuring range: DN15~DN700
Large capacity battery: Ni-MH battery, operate over 12 hours

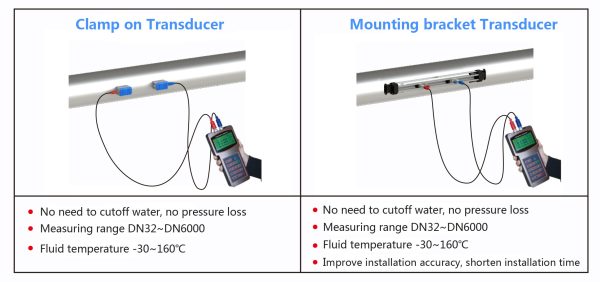

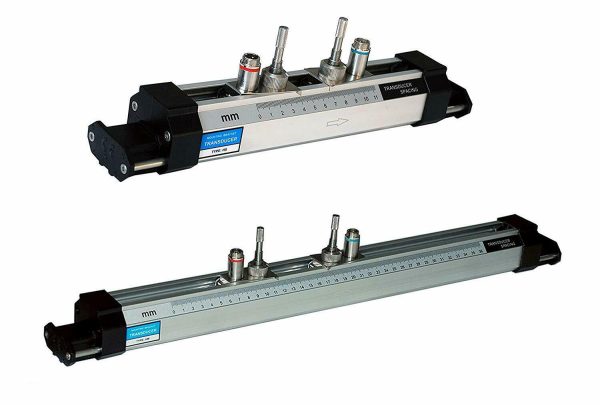

Non-intrusive measuring: clamp-on transducer, no pressure drop
Support multiple language menu: Chinese, English, Italian, and other languages can be customized.

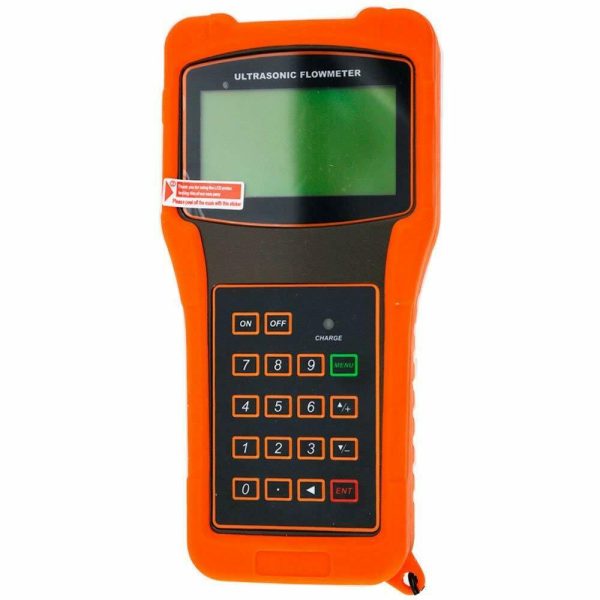

Large LCD display: show varieties of results like accumulated flow rate, velocity, working status etc.
Built-in data logger: store over 2000 lines measuring data
Features:
| Items | Performance & Parameter | |
|
Meter |
Principle | Transit time ultrasonic flowmeter |
| Accuracy | ± 1% | |

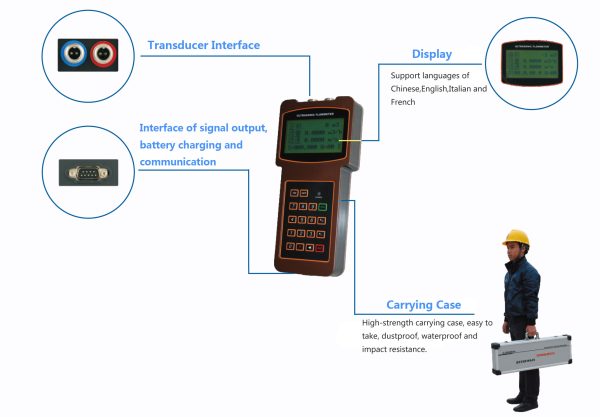

| Display | 4×16 character LCD with backlight, support the language
of Chinese, English and Italian |
|
| Signal Output | 1 way OCT pulse output(Pulse width 6~1000ms, the default
value is 200ms) |
|
| Data Interface | Insulate RS232 serial interface, upgrade the flowmeter
software by computer |
|
|
Pipe Installation Condition |
Pipe Material | Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC,
Aluminum, Glass steel product, liner is allowed. |
| Pipe Diameter | 15~700mm | |
| Straight Pipe | Transducer installation should be satisfied: upstream 10D,
downstream 5D, 30D from the pump. |
|
|
Measuring Medium |
Type of Liquid | Single liquid can transmit sound wave, such as water, sewage,
oil, chemicals, plant effluent, beverage, ultra-pure liquids, etc. |
| Temperature | -30~90°c | |
| Turbidity | Less than 10000ppm and little bubble | |
| Flowrate | 0 ~ ±7m/s | |
| Working
Environment |
Temperature | main unit: -20~60°c; Transducer: -30~90°c |
| Humidity | main unit: 85%RH; Transducer protection level: IP67 | |
| Power Supply | 3 built-in Ni-MH batteries 1.2V(for over 12 hours of operation).
Achieve to continuous measurement by connecting AC 90V – 260V adapter. |
|
| Power Consumption | 1.5W | |
| Housing Material | Inflaming retarding ABS | |
| Main unit Weight | 390g | |
